Combination switch component description - GF82.30-P-5000GZ
MODEL 164 up to Model Year 2008

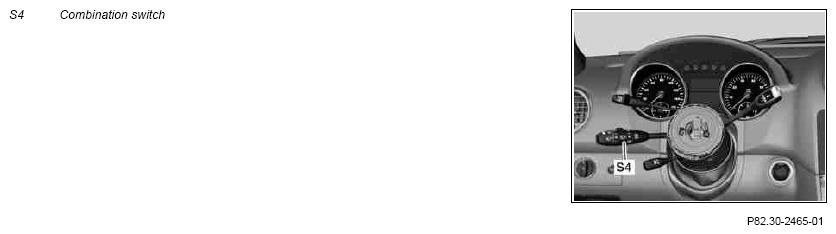

Location
The combination switch is mounted on the steering column. It is connected directly to the steering column module (N80).
Task
The combination switch controls the following functions:
Turn signals, high and low beams, headlamp flasher, windshield wipers and windshield washer.
The signals are read in by the steering column module and made available via CAN class B for the respective control units.
| Steering column module component description | GF54.21-P-6050GZ |
