Low-beams actuation, function - GF82.10-P-3002GX
MODEL 164.1/8 up to 8.7.07 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

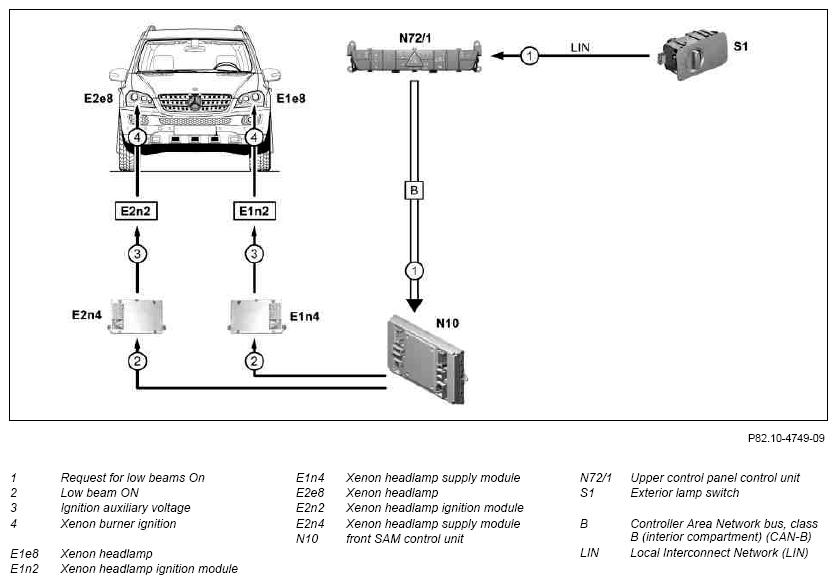

Shown on model 164.1
Function requirements
- C. 30 ON
- Rotary light switch in "Low beam" position
- Combination switch (S4) in center position (low beam switch position)
Function
The upper control panel control unit reads in the status of the rotary light switch via LIN and transmits this to the front SAM control unit via CAN-B.
The front SAM control unit in response actuates the xenon headlamp supply modules accordingly.
The xenon headlamp supply modules generate an ignition auxiliary voltage and pass this on to the xenon headlamp ignition modules. For their part, the xenon headlamp ignition modules generate the ignition voltage required for igniting the xenon bulbs.
When successfully ignited, the xenon headlamps are supplied with operating voltage by the xenon headlamp supply modules.
| Xenon headlamp control unit component description | E1n4, E2n4 | GF82.10-P-2114GZ | |
| Front SAM control unit, component description | N10 | GF54.21-P-7010GZ | |
| Upper control panel control unit, component description | N72/1 For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS), without code (430) Offroad package |
GF54.21-P-6040GZ | |
| For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) and code (430) Offroad package without |
GF54.21-P-6040GZE | ||
| For |
GF54.21-P-6040GZU | ||
| For model 164.8 with and with code (489) AIRmatic (air suspension without level adjustment and adaptive damping system ADS) | GF54.21-P-6040GZA | ||
| Rotary light switch, component description | S1 | GF82.10-P-4106GZ | |
| Combination switch, component description | S4 | GF82.30-P-5000GZ |
