Remove/install inner tie rod with axial joint - AR46.40-P-0201GZ

MODEL 164

Shown on model 164.1

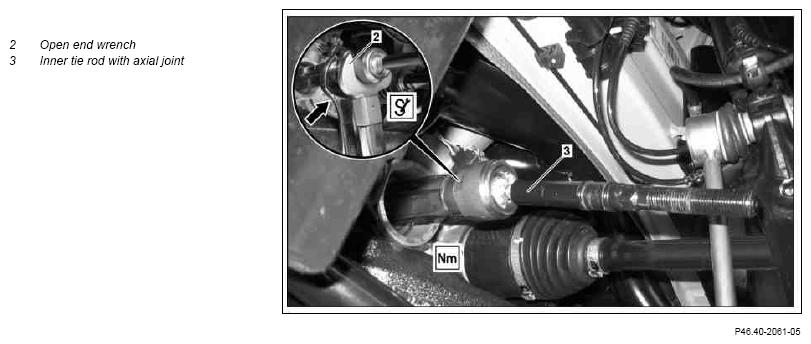

Fig 1: Identifying Inner Tie Rod With Axial Joint Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000GZ
2	Remove front wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
3	Remove tie rod		AR46.40-P-0200GZ
4	Remove bellows		AR46.40-P-0400GZ
5	loosen inner tie rod with axial joint (3) using open end wrench (2)	Counterhold toothed rack using suitable open end wrench (arrow).	*BA46.40-P-1003-01K
		Open-end wrench	Figure
6	Remove inner track rod with axial joint (3)	Do not use force (hammer blows, excessive leverage) otherwise you may damage the steering gear.
7	Install in the reverse order

TIE ROD

Number	Designation		Model 164.1/8
BA46.40-P-1003-01K	Inner track rod with axial joint to rack-and-pinion steering	Nm	110

Fig 2: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
