Remove/install track rod - AR46.40-P-0200GZ

MODEL 164

Shown on model 164.1

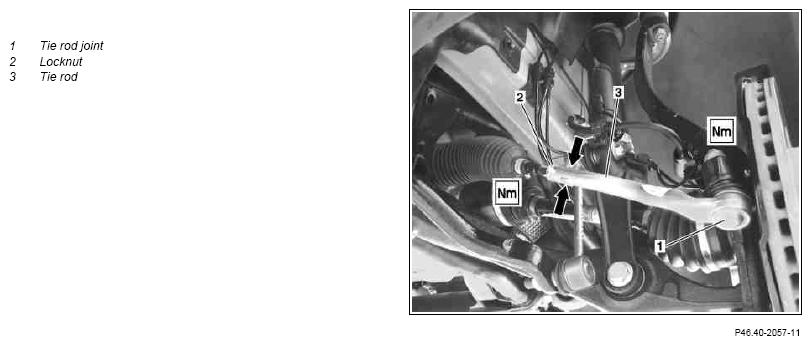

Fig 1: Identifying Track Rod Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.3.06	Clamping nut, tie rod to inner tie rod	Model 164.1/8	*BA46.40-P-1001-01K
27.9.06	Special tool replaces puller		Fig 3

	Remove/install
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000GZ
2	Remove front wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
3	Pry tie rod joint (1) off steering knuckle	Replace self-locking nut.	AR46.40-P-0200-02GZ
			*BA46.40-P-1002-01K
		Thrust piece	Fig 2
		Puller	Fig 3
		Press	Fig 4
4	Loosen jam nut (2) and unscrew tie rod (3)	Counterhold tie rod (3) for loosening the jam nut (2) (arrows).
			*BA46.40-P-1001-01K
5	Install in the reverse order
6	Perform a wheel alignment check		AR40.20-P-0200GZ

TIE ROD

Number	Designation			Model 164.1/8
BA46.40-P-1001-01K	Clamping nut, tie rod to inner tie rod		Nm	100
BA46.40-P-1002-01K	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	45
		Stage 2	∠°	90

Fig 2: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
