Remove/install ESP brake pressure sensor - AR42.45-P-0816GZ
MODEL 164
Shown on model 164.1
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Turn key in ignition switch to position "0". | ||
| 2 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |

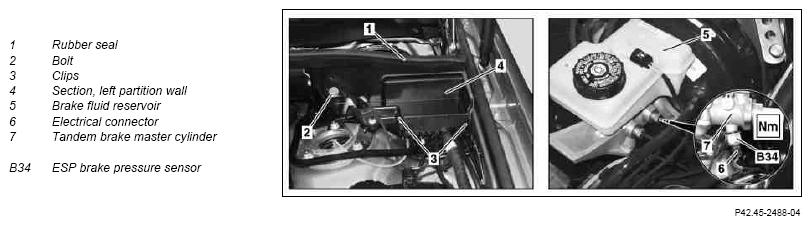

| 3 | Detach rubber seal (1) in the area of the section, left partition wall (4) | ||
| 4 | Remove bolt (2) | ||
| 5 | Detach section, left partition wall (4) from the clips (3) | ||
| 6 | Suction off brake fluid from brake fluid reservoir (5) | ||
| 7 | Disconnect electrical connector (6) from ESP brake pressure sensor (B34) | ||
| 8 | Detach ESP brake pressure sensor (B34) from tandem master brake cylinder (7) | ||
| *BA42.45-P-1001-01J | |||
| 9 | Install in the reverse order | ||
| 10 | Bleed brake system | AR42.10-P-0010GZ | |
| *BF42.10-P-1001-01G | |||
| 11 | Check the fluid level in the brake fluid reservoir (5) and correct if necessary | ||
| Brake system - inspect fluid level | AP42.10-P-4210GZ | ||
| 12 | Read out fault memory | STAR DIAGNOSIS system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 13 | Check brake system for leaks | AR42.10-P-0100-01GZ |
ELECTRONIC STABILITY PROGRAM (ESP)
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA42.45-P-1001-01J | Brake pressure sensor to master brake cylinder | Nm | 35 |
BRAKE FLUID
| Number | Designation | Model 164.1/8 | ||
|---|---|---|---|---|
| BF42.10-P-1001-01G | Brake fluid | Filling capacity | Liters | ≈ 0.8 |
| Specifications for Operating Fluids | Specification |
DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1) |
||
| Specification |
MB 331.0 brake fluid A 000 989 08 07 |
|||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS system, Compact Passenger Car | 6511 1801 00 |
