Remove/install front beverage holder - AR68.20-P-2240GZ

MODEL 164

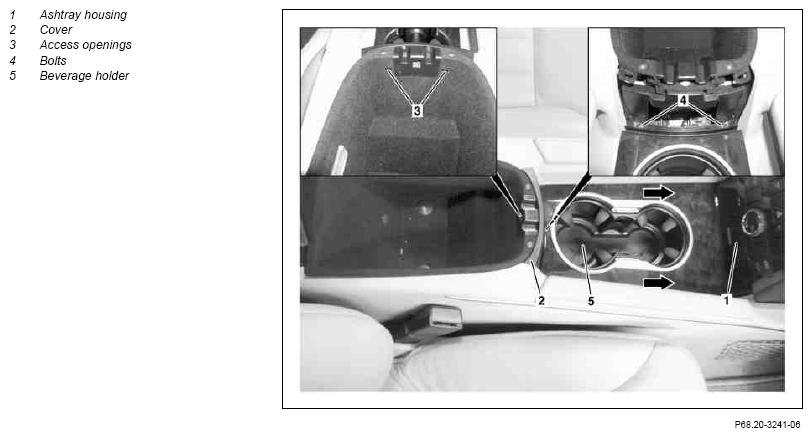

Fig 1: Identifying Front Beverage Holder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove ashtray housing (1) from front center console		AR68.20-P-2400GZ
2	Open armrest
3	Remove cover (2).	Insert long wedge into access openings (3) and raise cover (2).
		Long wedge	Figure
4	Remove screws (4)
5	Slide beverage holder (5) toward front (arrows) and raise
6.1	Disconnect connector from beverage holder illumination (5).	If present.
7	Remove beverage holder (5).
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
