Remove/install vacuum pump - AR43.05-P-1320GZ

MODEL 164, 251 with ENGINE 642

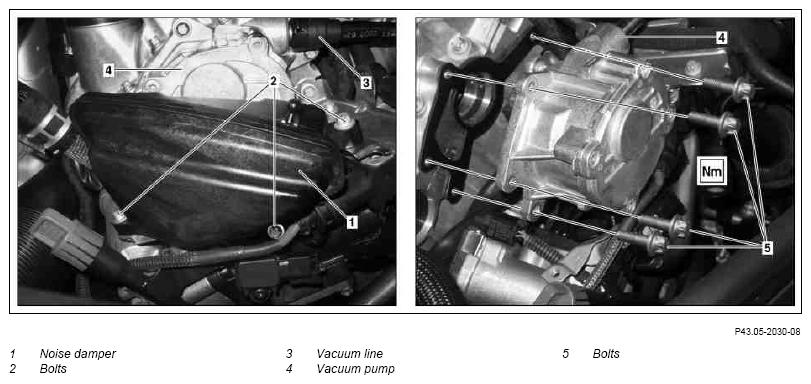

Fig 1: Identifying Vacuum Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Removes strut tower brace	Model 164.8 only Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
2	Remove engine trim panel	Ignition switched off.
		Model 164	AR01.10-P-2405GZB
		Model 251	AR01.10-P-2405RTB
3	Press in fastening catches on vacuum line (3) and pull off.
4	Loosen bolts (2) at noise muffler (1).	Check sealing ring at noise muffler (1) for damage and apply light coating of grease.
			*BA43.05-P-1003-01A
5	Remove noise muffler (1).	Seal opening at throttle valve actuator.
6	Loosen bolts (5) of vacuum pump (4).	Position driver of vacuum pump (4) correctly in camshaft. Ensure seal is seated correctly at cylinder head. Replace factory-installed aluminum screw/bolts installed with steel screw/bolts.
			*BA43.05-P-1001-01A
		Loctite 243	*BR00.45-Z-1133-02A
7	Remove vacuum pump (4).
8	Install in the reverse order

VACUUM PUMP

Number	Designation		Model 164, 166, 203, 204, 207, 209, 211, 212, 218, 219, 221, 251 with engine 642
BA43.05-P-1001-01A	Bolt, vacuum pump to cylinder head	Nm	9
BA43.05-P-1003-01A	Bolt, noise muffler	Nm	9

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1133-02A	Loctite 243	A 613 989 09 71
