Remove/install strut tower brace - AR62.30-P-2500GY

MODEL 164.8

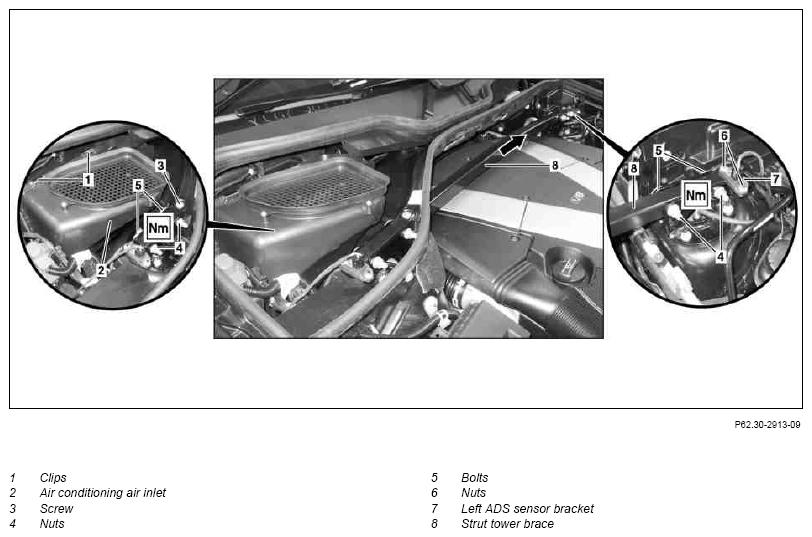

Fig 1: Identifying Strut Tower Brace Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8 with engine 629

MODIFICATION NOTES

25.7.08

"Wax bolted connections" added

Step 6

	Remove/install
1	Open engine hood		AR88.40-P-1000GZ
2	Loosen clamps (1), remove air conditioning air inlet (2) upward	Bottom lug on air conditioning air inlet (2) should reach into corresponding guide.
3	Unscrew nuts (6), place left ADS sensor bracket (7) to one side	Do not disconnect left ADS sensor (7) electrically.
4	Remove bolt (3)
5	Unscrew nuts (4)		*BA62.30-P-1005-02D
6	Remove bolts (5) toward rear	Wax bolted connections.	*BR00.45-Z-1018-05A
7	Slightly raise strut tower brace (8) on left side and remove left toward (arrow)	Check whether rubber seal, through which the strut tower brace (8) runs, is correctly seated.
8	Install in the reverse order

FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number	Designation		Model 164.8
BA62.30-P-1005-02D	Nut, for dome strut bolted connection to bracket	Nm	50

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1018-05A	Wax for the engine compartment (400 ml spray can)	A 000 986 33 70 10
