Remove/install track rod - AR35.20-P-0109CW

MODEL 204, 207

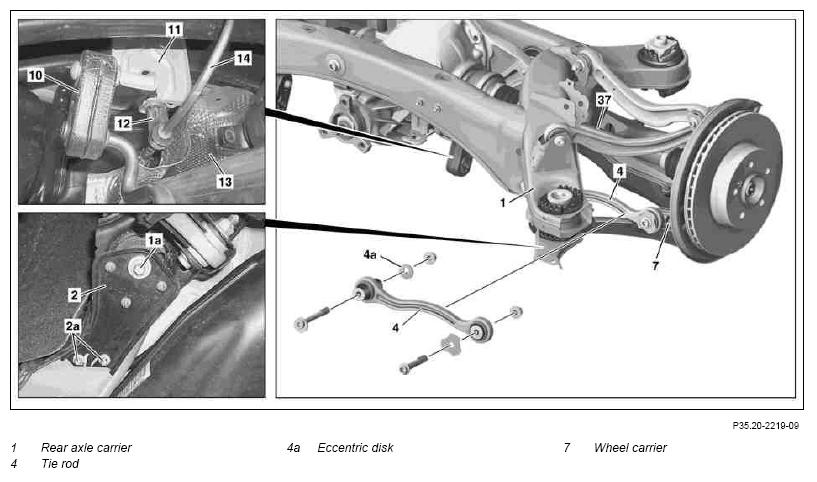

Fig 1: Identifying Rear Axle Carrier, Eccentric Disk, Wheel Carrier And Tie Rod

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation:  Only tighten bolts and nuts of the chassis components in the curb condition.
1	Lower front rear axle carrier (1)		AR35.10-P-0015CW
2	Mark installation position of eccentric disk (4a)	The toe-in is set ex-factory with the eccentric disk (4a).
3	Remove tie rod (4) from wheel carrier (7) and rear axle carrier (1)		*BA35.20-P-1001-04I  *BA35.20-P-1002-04I
4	Install in the reverse order
5	Perform a wheel alignment check	Model 204	AR40.20-P-0200CW

TIE ROD

Number	Designation			Model 204	Model 207
BA35.20-P-1001-04I	Self-locking nut, tie rod at wheel carrier	Stage 1	Nm	50	50
		Stage 2	∠°	90	90
BA35.20-P-1002-04I	Self-locking nut, track rod to rear axle carrier	Stage 1	Nm	50	50
		Stage 2	∠°	90	90
