Lower rear axle - AR35.10-P-0015CW

MODEL 204, 207

Lower rear axle carrier at front

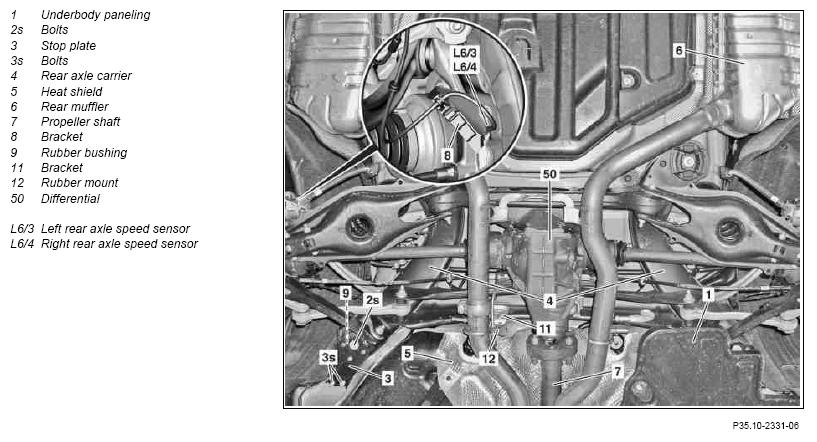

Fig 1: Identifying Lower Rear Axle Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Danger!	Risk of death caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Installation: Caution: important note: It is mandatory for the thread in the frame floor assembly to be recut and blown out, as the remaining adhesive remains in the thread prevent the required preload force of the bolt being reached, despite the specified torque and specified angle of rotation being reached. If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolt, which could ultimately lead to bolt fracture.
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation: Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove rear wheels
	Remove/install wheels		AP40.10-P-4050CW
3	Remove the left and right underfloor paneling (1)
4	Remove left and right rear diagonal strut	Model 207.4
			*BA61.10-P-1007-01H
			*BA61.10-P-1008-01H
			*BA61.10-P-1009-01H
5	Loosen rear heat shield (5)
6	Remove exhaust tips	Engine 273
7	Unhook exhaust system from exhaust rubber mount (s) on rear axle carrier and remove exhaust rubber mount	Engine 271, 272, 273, 642, 646, 651
8	Secure exhaust system at rear muffler (6)	Engine 271, 272, 273, 642, 646, 651
9.1	Unhook rear muffler (6) from exhaust rubber mount(s)	Engine 271, 272, 273, 642, 646, 651
9.2	Detach exhaust system at connecting point of catalytic converter/center muffler and remove	Engine 156	AR49.10-P-7100CW
10	Detach propeller shaft (7) from differential (50)		AR41.10-P-0050CW
11	Support rear axle carrier (4) at differential (50) using transmission jack and transmission plate and lash down securely
12	Unclip electrical lines of rear axle rpm sensors (L6/3, L6/4) from brackets (8) on wheel carriers
13.1	Unclip electrical line of right rear brake wear sensor from bracket (8) on right wheel carrier	Vehicles without code (483) ADVANCED AGILITY package and with right rear brake wear sensor
13.2	Unclip electrical lines of left, right rear axle damping valve unit or of right rear brake wear sensor out of brackets (8) on wheel carrier	Vehicles with code (483) ADVANCED AGILITY package
14	Unclip rubber mount (12) of rear brake cable from bracket (11)
15	Remove bolts (2s, 3s) and remove stop plates (3)	Installation: Recut and blow out the threads in the frame floor assembly to ensure a perfect threaded connection.
		Use new bolts (2s).
			*BA35.10-P-1001-01N
			*BA35.10-P-1003-01N
16	Lower the rear axle carrier (4)	When lowering, ensure that no cables or lines are damaged.
17	Install in the reverse order

REAR AXLE CARRIER

Number	Designation			Model 204	Model 207
BA35.10-P-1001-01N	Self-locking bolt, front rear axle carrier rubber bushing to frame floor	Stage 1	Nm	80	80
		Stage 2		Releasing	Releasing
		Stage 3	Nm	80	80
		Stage 4	∠°	90	90
BA35.10-P-1003-01N	Bolt, stop plate to body		Nm	28	28

FRAME FLOOR ASSEMBLY

Number	Designation		Model 207.4
BA61.10-P-1007-01H	Bolt, rear diagonal strut on spare wheel well	Nm	80
BA61.10-P-1008-01H	Bolt, rear diagonal strut on longitudinal member	Nm	80
BA61.10-P-1009-01H	Bolt, rear diagonal strut to bracket	Nm	17
