Remove/install thrust arm - AR35.20-P-0113CW

MODEL 204, 207

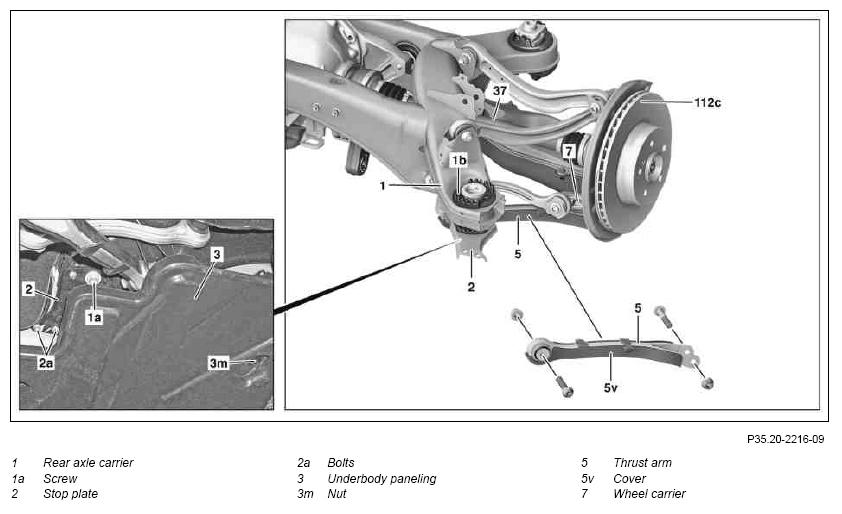

Fig 1: Identifying Thrust Arm Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Installation: Caution: important note:  It is mandatory for the thread in the frame floor assembly to be recut and blown out, as the remaining adhesive remains in the thread prevent the required preload force of the bolt being reached, despite the specified torque and specified angle of rotation being reached. If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolt, which could ultimately lead to bolt fracture.
		While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation:  Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove rear wheel Remove/install wheels		AP40.10-P-4050CW
3	Support rear axle carrier (1) with transmission jack and transmission plate
4	Loosen underfloor paneling (3) at rear, to do this unscrew nut (3m)
5	Detach bolt connecting rear diagonal strut to stop plate bracket (2)	Model 207.4
			*BA61.10-P-1009-01H
6	Remove bolts (1a, 2a) and stop plates (2)	Installation:  Recut and blow out the threads in the frame floor assembly to ensure a perfect threaded connection.
		Use new bolts (1a).
			*BA35.10-P-1001-01N
			*BA35.10-P-1003-01N
7	Remove thrust arm (5) from rear axle carrier (1) and wheel carrier (7)		*BA35.20-P-1001-05G
			*BA35.20-P-1002-05G
8	Remove panel (5v) from thrust arm (5)	When replacing the thrust arm
9	Check rubber bushings in wheel carrier (7)	If necessary: ↓, Remove/install rubber mounts of thrust arm.	AR35.20-P-0105-01CW
			Fig 2
10	Install in the reverse order

REAR AXLE CARRIER

Number	Designation			Model 204	Model 207
BA35.10-P-1001-01N	Self-locking bolt, front rear axle carrier rubber bushing to frame floor	Stage 1	Nm	80	80
		Stage 2		Releasing	Releasing
		Stage 3	Nm	80	80
		Stage 4	∠°	90	90
BA35.10-P-1003-01N	Bolt, stop plate to body		Nm	28	28

THRUST ARM

Number	Designation				Model 204	Model 207
BA35.20-P-1001-05G	Self-locking nut, thrust arm to rear axle carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
BA35.20-P-1002-05G	Self-locking nut, thrust arm to wheel carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90

FRAME FLOOR ASSEMBLY

Number	Designation		Model 207.4
BA61.10-P-1009-01H	Bolt, rear diagonal strut to bracket	Nm	17

Fig 2: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
