Secure vehicle on vehicle lift - AR00.60-P-0100CW

MODEL 204, 207, 246

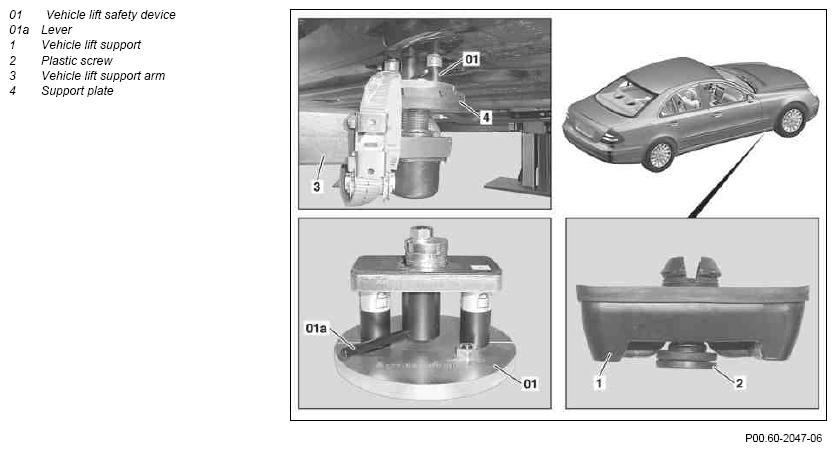

Fig 1: Identifying Vehicle Lift Safety Device Components

Courtesy of MERCEDES-BENZ USA

	Mount/dismantle
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
		The lifting platform safety devices (01) must always be mounted in pairs i.e. at two positions in the vehicle longitudinal members. The vehicle lift safety devices (01) can both be mounted at the front, at the rear or on one side.
1	Remove plastic screws (2) from vehicle lift supports (1)
2	Pry vehicle lift supports (1) out of longitudinal members	Do not use any sharp-edge tools, as this will result in damage to the longitudinal member.
3	Insert vehicle lift safety devices (01) into longitudinal members		Fig 2
4	Swivel lever (01a) of vehicle lift safety devices (01) to the right	Thus, the lifting platform safety devices (01) are locked onto the longitudinal members.
5	Adjust support plates (4) of vehicle lift support arms (3) until they are level with the vehicle lift safety devices (01) or the remaining vehicle lift supports (1)	Rotate support plates until they make contact with the vehicle lift safety devices (01) or vehicle lift supports of the longitudinal members.
6	Lift vehicle on vehicle lift.	Model 204, 207
		Model 246	AR00.60-P-1000AK
7	Secure vehicle lift safety devices (01) using tensioning straps at the vehicle lift support arms
8	Dismantle in reverse order.

Fig 2: Identifying Vehicle Lift Safety Device (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
