Remove/install rubber mounts from thrust arm - AR35.20-P-0105-01CW

MODEL 204, 207, 212, 218, 231

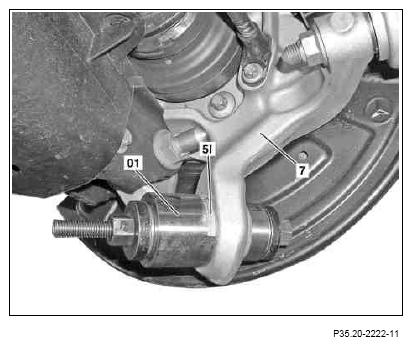

Fig 1: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Removing

1. Pull rubber mount (5l) out of wheel carrier (7) using extraction and insertion tool (01).
2. Remove extraction and insertion tool (01) with rubber mount (5l).

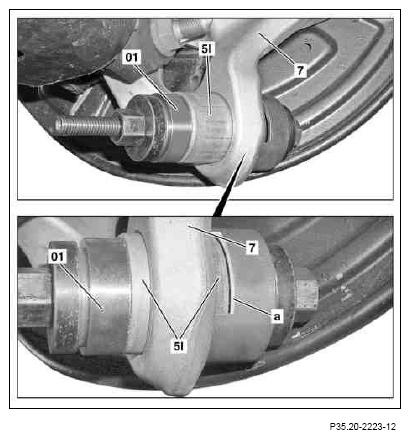

   Fig 2: Identifying Extraction And Insertion Tool With Rubber Mount

   Courtesy of MERCEDES-BENZ USA

Install

3. Position extraction and insertion tool (01) with rubber mount (5l) at wheel carrier (7).
4. Pull rubber mount (5l) into wheel carrier (7) using extraction and insertion tool (01).

   Install far enough to enable the rubber mount (5l) fully covers the cutout (a) in the extraction and insertion tool (01).

   Fig 3: Identifying Rubber Mount, Wheel Carrier And Insertion Tool

   Courtesy of MERCEDES-BENZ USA
