Remove/install spring control arm mount at rear axle carrier - AR35.20-P-0104CW
MODEL 204, 207

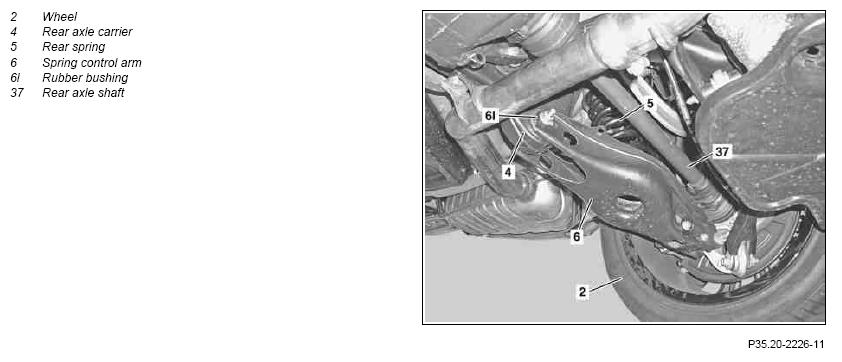

Fig 1: Identifying Wheel, Rear Axle Carrier, Rear Spring, Spring Control Arm, Rubber Bushing And Rear Axle Shaft
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Operate parking brake | ||
| 2 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 3 | Remove corresponding rear diagonal strut | Model 207.4 |
*BA61.10-P-1007-01H *BA61.10-P-1008-01H *BA61.10-P-1009-01H |
| 4 | Remove required components of exhaust system | Vehicles with gasoline engine | AR49.10-P-7100CW |
| 5 | Remove rear spring (5) | AR32.20-P-0230CW | |
| 6 | Remove spring control arm (6) on rear axle carrier (4) and fold downwards | *BA35.20-P-1001-01D | |
| 7 | Remove rubber bushing (6l) | AR35.20-P-0114-01CW Fig 2 Fig 3 Fig 4 |
|
| 8 | Install in the reverse order |
SPRING CONTROL ARM
| Number | Designation | Model 204 | Model 207 | ||
|---|---|---|---|---|---|
| BA35.20-P-1001-01D | Self-locking nut, spring control arm to rear axle carrier | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 90 | 90 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 207.4 | |
|---|---|---|---|
| BA61.10-P-1007-01H | Bolt, rear diagonal strut on spare wheel well | Nm | 80 |
| BA61.10-P-1008-01H | Bolt, rear diagonal strut on longitudinal member | Nm | 80 |
| BA61.10-P-1009-01H | Bolt, rear diagonal strut to bracket | Nm | 17 |
