Remove/install spring control arm rubber mount - AR35.20-P-0114-01CW

MODEL 204, 207, 212, 218

Removing

The stroke of the press (010) is very low, because of this the press (010) must be released several times, the spindle (a) of the bracket (01) must be adjusted and the press (010) operated again.

1. Install sleeve (001) on bracket (01).

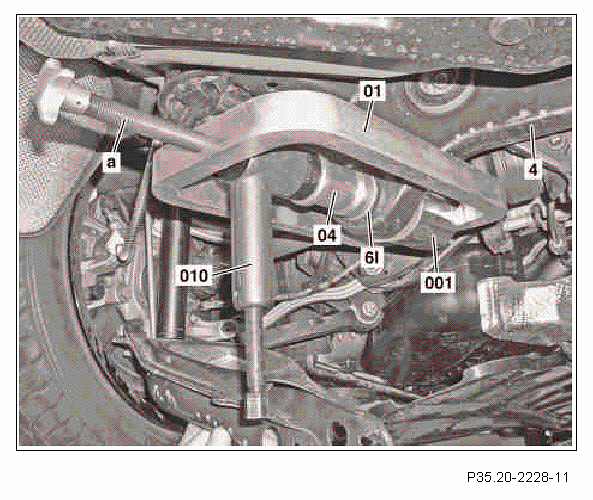

2. Attach bracket (01) to rear axle carrier (4) and rubber mount (6l) using sleeve (001), thrust piece (04) and press (010).
3. Press rubber mount (6l) out of rear axle carrier (4).
   Fig 4: Identifying Pressing Rubber Mount Out Of Rear Axle Carrier

   Courtesy of MERCEDES-BENZ USA

   001 Sleeve (204 589 04 43 01)

   01 Bracket (220 589 01 43 01)

   04 Thrust piece (220 589 01 43 04)

   010 Press (202 589 04 43 10)

   4 Rear axle carrier

   6l rubber bushing

   a Spindle

   Install

4. Install sleeve (02) on bracket (01).

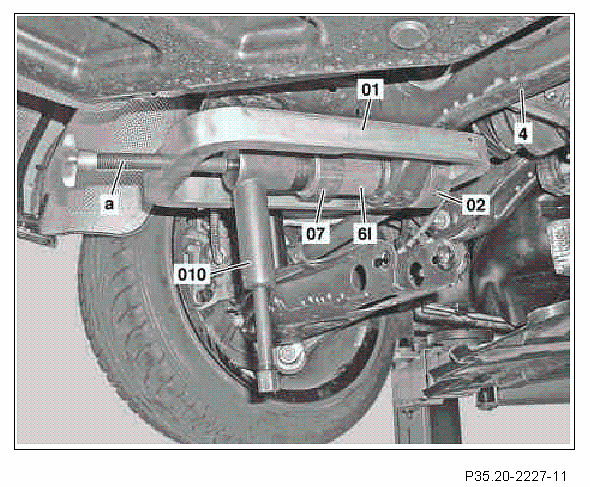

5. Attach bracket (01) to rear axle carrier (4) and rubber mount (6l) using sleeve (02), thrust piece (07) and press (010).
6. Press rubber mount (6l) into rear axle carrier (4).

01 Bracket (220 589 01 43 01)

02 Sleeve (204 589 04 43 02)

07 Thrust piece (220 589 01 43 07)

010 Press (202 589 04 43 10)

4 Rear axle carrier

6l Rubber bushing

(a) Spindle
