Front rubber mount of rear axle mount - Removal and installation - AR35.10-P-0041CW

MODEL 204, 207

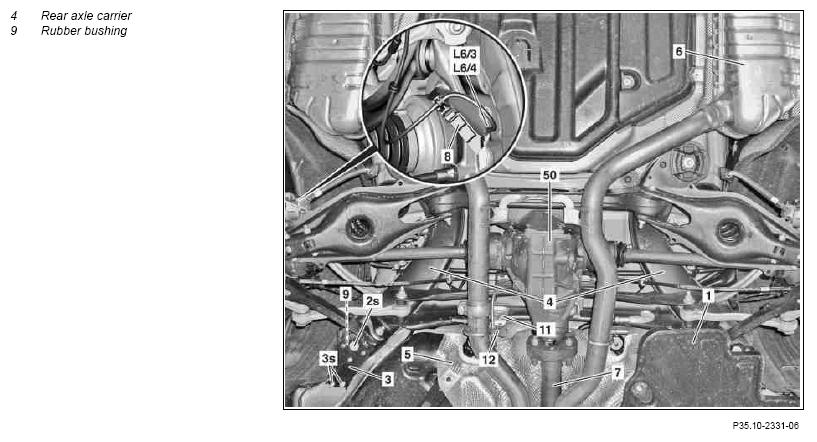

Fig 1: Identifying Rear Axle Carrier And Rubber Bushing

Courtesy of MERCEDES-BENZ USA

	Remove/install
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
1	Lower front rear axle carrier (4)		AR35.10-P-0015CW
2	Press rubber mount (9) out of rear axle carrier (4)		AR35.10-P-0040-02CW
			Fig 2
			Fig 3
			Fig 4
			Fig 5
			Fig 6
		Antifriction agent	*BR00.45-Z-1010-06A
3	Install in the reverse order

Fig 2: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Retaining Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
