Adjust front panoramic glass roof (MODEL 204.3, 207.3, 212.0 /1 /2) - AR77.21-P-0501EW
MODEL 204.3, 207.3, 212.0 /1 /2 with CODE (413) Panoramic glass roof with top sliding roof
| Remove | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |

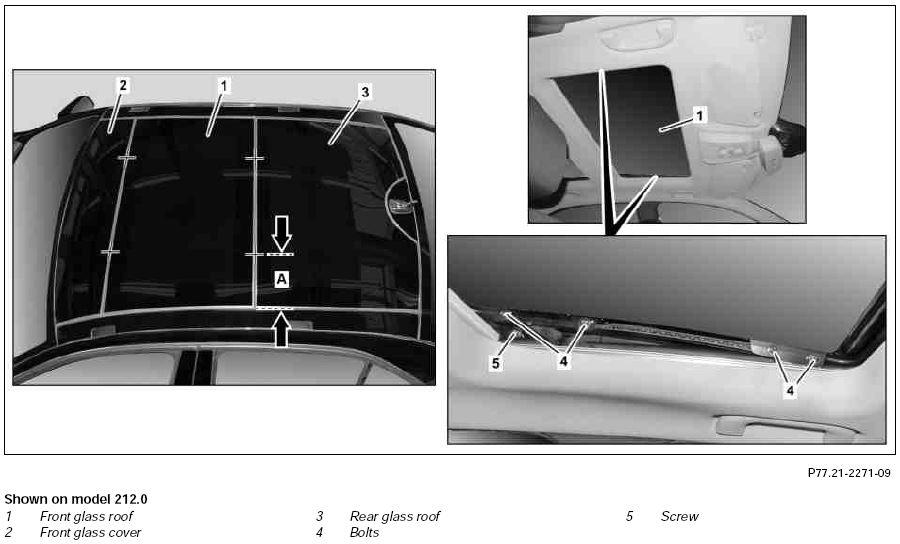

| 1 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 2 | Loosen bolts (5) on left and right outer support | Only if the transition from tilting to sliding and vice versa has to be adjusted or if the or if the front glass roof (1) has been replaced. | |
| 3 | Loosen bolts (4) on front glass roof (1) on both sides. | ||
| Adjust | |||
| 4 | Close front glass roof (1). | ||
| 5 | Adjust front glass roof (1). | Adjust gaps and height of front glass roof (1) in relation to rear glass roof (3) and to front glass cover (2). Observe measuring position (A). | BE77.21-P-1001-01E |
| 6 | Fix setting by tightening bolts (4) at both sides of front glass roof (1) | ||
| 7 | Move front glass roof (1) to tilt position | ||
| 8 | Tighten bolts (4) on both sides of front glass roof (1) | ||
| 9 | Press left and right outer support upward onto front glass roof (1) and tighten with bolts (5) | Only if the transition from tilting to sliding and vice versa has to be adjusted or if the front glass roof (1) has been replaced. | |
| 10 | Open front glass roof (1) and close again | If the front glass roof (1) is tensioned, cracking noise can occur, repeat adjustment if necessary. | |
| 11 | Check gaps and height adjustment. | Observe measuring position (A) for height adjustment; repeat adjustment if necessary. | BE77.21-P-1001-01E |
| Install | |||
| 12 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 13 | Teach in and normalize front glass roof (1) Connect STAR DIAGNOSIS and read out fault memory |
AD00.00-P-2000-04A | |
TEST AND ADJUSTMENT VALUES OF PANORAMIC ROOF
| Number | Designation | Nm |
|---|---|---|
| BE77.21-P-1001-01E | Height setting | |
| Measuring position "A" (X) | 140 mm | |
| Front: deeper than outer skin of roof | 0-1 mm | |
| Rear: higher than outer skin of roof | 0-1 mm | |
