Remove/install folded rubber seal of front panoramic glass roof - AR77.21-P-0530EW
MODEL 166, 204.3, 207.3, 212.0 /1 /2 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |

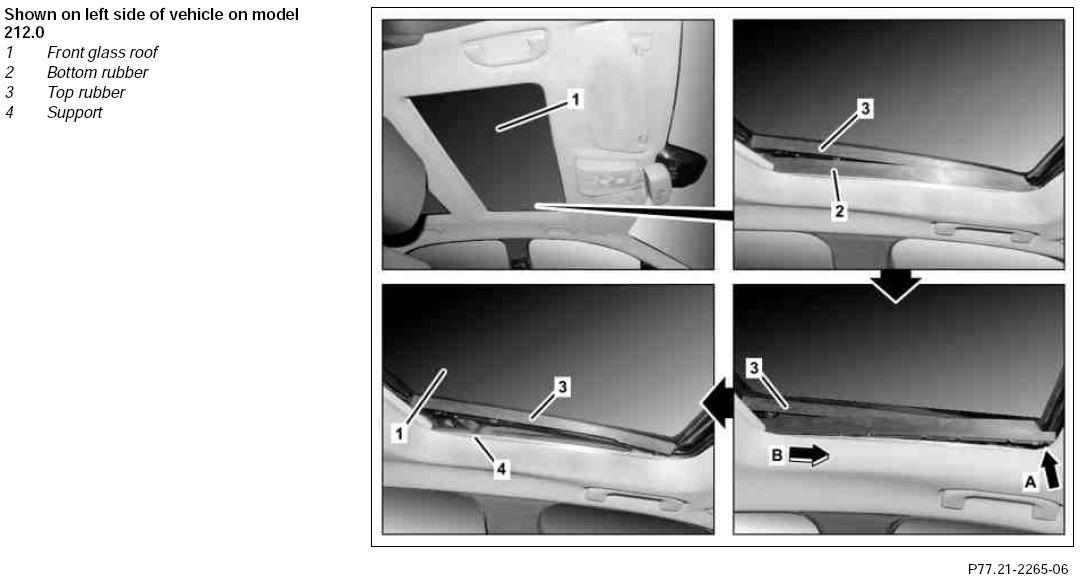

| 1 | Open roller sun blind, move front glass roof (1) into tilt position | ||
| 2 | Detach bottom rubber (2) in front area (arrow A) from the mount (4) on the panoramic roof rail and remove in the direction of the arrow (arrow B) | ||
| 3 | Upper rubber (3) on front glass roof (1) unclip and remove | ||
| 4 | Install in the reverse order |
