Remove/install trim at C-pillar (MODEL 204.3, 207.3) - AR68.30-P-4490EC
MODEL 204.3, 207.3
| Remove/install | |||
| 1 2 |

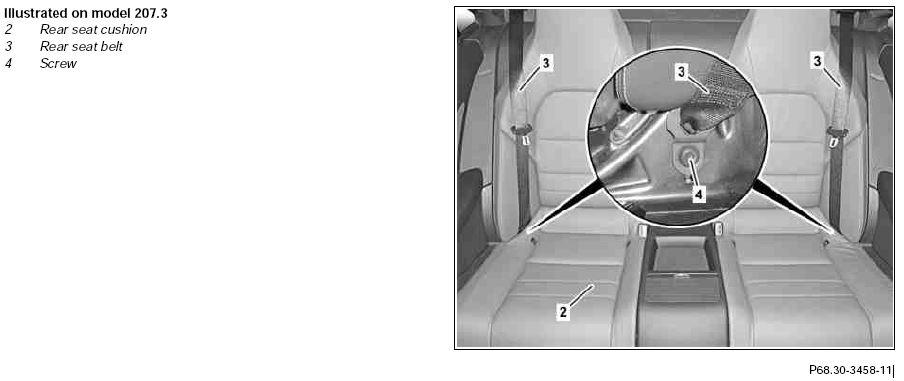

Remove rear seat cushion (2) Unscrew screw (4) from belt end fitting |
Model 204.3, 207 | AR91.12-P-1020EC BA91.40-P-1006-01P |

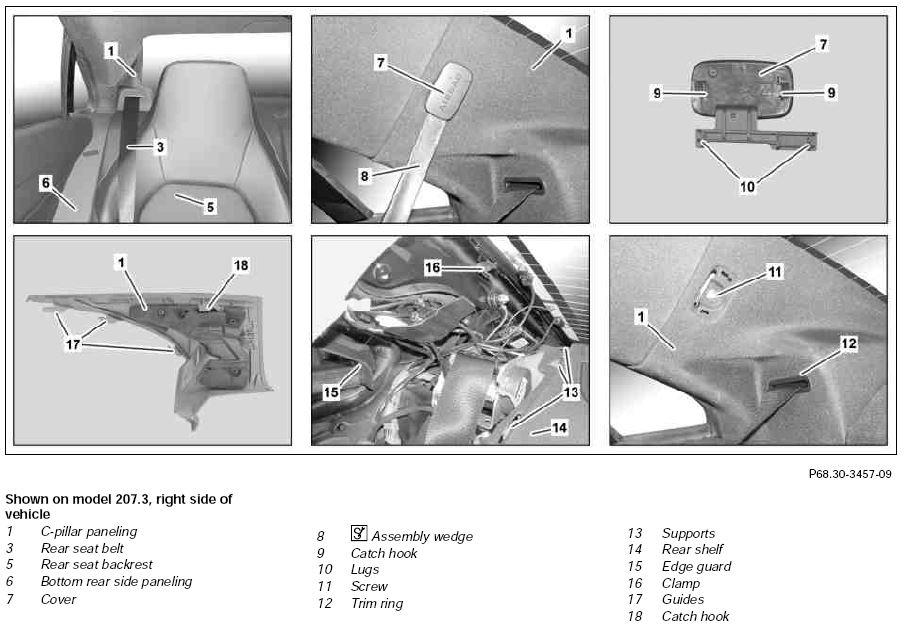

| 3 | Detach rear bottom side paneling (6) in rear area | Detach rear bottom side paneling (6) only until C-pillar paneling (1) is accessible and can be removed | AR68.30-P-4780ED |
| 4 | Release rear seat backrest (5) and fold forward | ||
| 5 | Unclip catch hook (9) from the cover (7) with assembly wedge (8) | Assembly wedge: Figure | |
| 6 | Lift cover (7), guide out of the C-pillar paneling (1) in the lower area and remove downwards | Installation: Insert lugs (10) into the top of the C-pillar paneling (1) first and then position cover (7) on the C-pillar paneling (1). | |
| 7 | Remove bolt (11) | ||
| 8 | Unclip catch hook (18) of C-pillar paneling (1) at clamp (16) | Installation: Check clamp (16) for correct fit in body, align if necessary. Align edge guard (15) to C-pillar paneling (1). | |
| 9 | Pull out C-pillar paneling (1) forwards on the guides (17) from the rear shelf (14) supports (13) | ||
| 10 | Unclip rosette (12) at the C-pillar paneling (1) | Assembly wedge: Figure | |
| 11 | Remove rear seat belt (3) from C-pillar paneling (1) and remove C-pillar paneling (1) | ||
| 12 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Nm |
|---|---|---|
| BA91.40-P-1006-01P | Bolt at rear belt end fitting | 35 |
