Remove/install rear seat cushion (MODEL 204.3 except CODE (P98) Black Series) - AR91.12-P-1020EC

MODEL 204.3 except CODE (P98) Black Series

MODEL 204.3 with CODE (224) Design individual seats in rear

MODEL 207

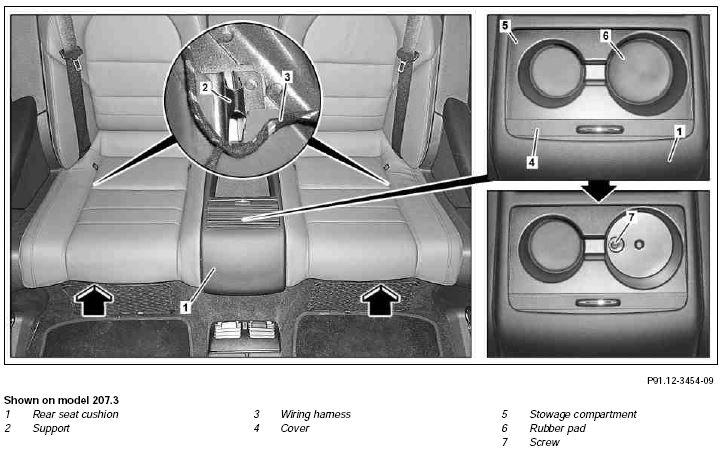

Fig 1: Identifying Rear Seat Cushion Components
G00547469Courtesy of MERCEDES-BENZ USA

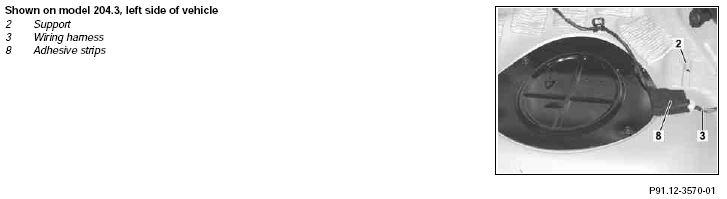

Fig 2: Identifying Support, Wiring Harness And Adhesive Strips
G00547470Courtesy of MERCEDES-BENZ USA

Move both front seats forward. Open cover (4) of stowage compartment (5). Remove rubber mounting (6). Unscrew bolt (7). Lift rear seat cushion (1) at front and remove in direction of the arrow. Installation: In model 204.3, 207.3: Ensure that retaining brackets at bottom of rear seat cushion (1) are seated correctly in mounts (2) and pay attention to routing and attachment of electrical wiring harness (3) in front of mounts (2). Otherwise electrical wiring harness (3) will be damaged and must be replaced or repaired. Install in the reverse order.
