Remove/install radio display - AR82.60-P-7722CW

MODEL 204.0 /2 /3 with CODE (523) MB Audio 20 radio

MODEL 204.0 /2 /3 with CODE (510) Audio 20 with CD changer

MODEL 204.0 /2 /3 with CODE (525) MB Audio 50 APS radio

MODEL 204.0 /2 /3 with CODE (511) Audio 50 APS with DVD changer

MODEL 204.0 /2 /3 with CODE (527) COMAND APS with single DVD drive (with navigation)

MODEL 204.0 /2 /3 with CODE (512) COMAND APS with DVD changer

Shown on model 204.0 up to 28.2.2011, with code (527) COMAND APS with single DVD drive (with navigation)

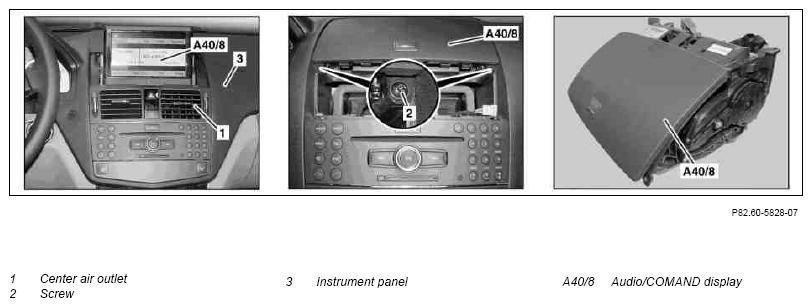

Fig 1: Identifying Center Air Outlet, Instrument Panel, Audio/COMAND Display And Screw

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 up to 28.2.2011, with code (523) MB Audio 20 radio or with CODE (510) Audio 20 with CD changer or with CODE (525) MB Audio 50 APS radio or with CODE (511) Audio 50 APS with DVD changer

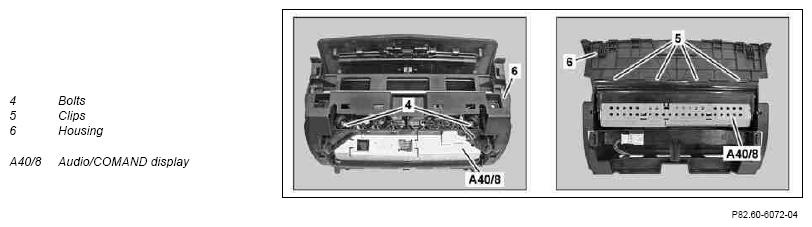

Fig 2: Identifying Audio/COMAND Display, Bolts, Clips And Housing

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of the Audio/COMAND display (A40/8) in STAR DIAGNOSIS	When replacing the Audio/COMAND display (A40/8). Installation: Transmit buffered basic data to the new Audio/COMAND display (A40/8).
1	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove center air vent (1)	On model 204.0/2 up to model year 2012 / YoM 11	AR83.10-P-4503CW
2	Remove center air vent (1)	On model 204.0/2 as of model year 2012 / YoM 11 Model 204.3	AR83.10-P-4503CWA
3	Remove bolts (2)	On model 204.0/2 up to model year 2012 / YoM 11
4	Remove instrument cluster covers	On model 204.0/2 as of model year 2012 / YoM 11 Model 204.3	AR54.30-P-6015CW
5	Unclip folded-in Audio/COMAND display (A40/8) out of instrument panel (3) upwards at an angle	In model 204.0/2 up to 28.2.2011 With code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer, the Audio/COMAND display (A40/8) can be placed in the service position for the removal/installation using Star Diagnosis.
5	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
6	Unscrew left and right screw/bolt, then remove Audio/COMAND display (A40/8) from instrument panel	On model 204.0/2 as of model year 2012 / YoM 11 Model 204.3
7	Disconnect electrical connectors at rear of Audio/COMAND display (A40/8)
8	Remove screws/bolts (4), unclip clamps (5) and remove Audio/COMAND display (A40/8) from housing (6)	In model 204.0/2 up to 28.2.2011 When replacing the Audio/COMAND display (A40/8) in vehicles with code (523) MB Audio 20 radio or with code (510) Audio 20 incl. CD changer or with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS incl. DVD changer
9	Install in the reverse order
