Remove/install pop-up bracket on tilting/sliding roof - AR77.20-P-1700CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212 with CODE (414) Power glass tilting/sliding roof
MODEL 212 with CODE (414) Power glass tilting/sliding roof up to model year 2011

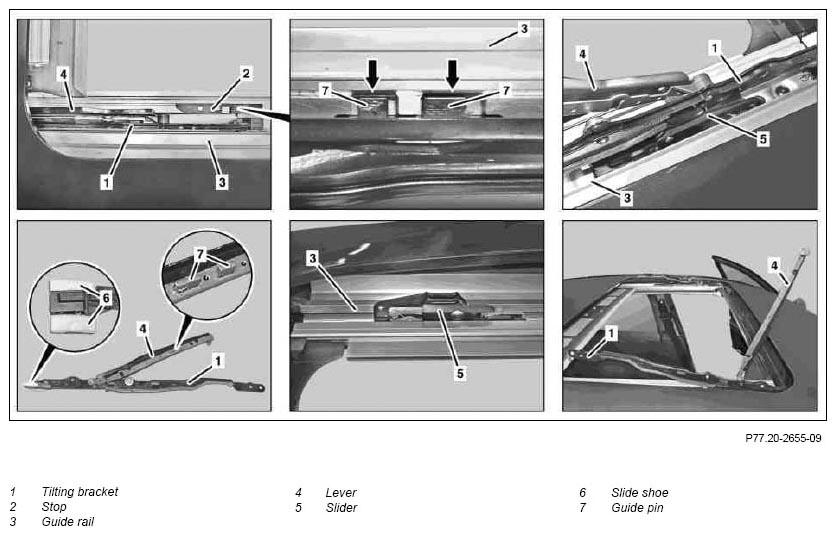

Shown on right pop-up bracket on model 204.0
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove water drain rail. | AR77.20-P-1997CW | |
| 2 | Move tilting bracket (1) in "OPEN" direction by actuating tilting/sliding roof drive unit until stop (2) can be removed from guide rail (3). | ||
| 3 | Unclip stop (2) from guide rail (3) toward outside of vehicle. | ||
| 4 | Remove wind deflector from tilting/sliding roof. | ||
| 5 | Remove tilting/sliding roof drive unit | AR77.20-P-3010CW | |
| 6 | Push slider (5) together with tilting bracket (1) forward until guide pin (7) on lever (4) is positioned in cutouts (arrows) in guide rail (3). | ||
| 7 | Move lever (4) on tilting bracket (1) forward. | ||
| 8 | Guide tilting bracket (1) out of slider (5) toward rear and remove. | ||
| Install | |||
| 9 | Insert tilting bracket (1) into slider (5). | ||
| 10 | Move lever (4) toward rear and push slider (5) with tilting bracket (1) toward rear until stop (2) can be inserted into guide rail (3). | ||
| 11 | Install stop (2). | ||
| 12 | Install wind deflector on tilting/sliding roof. | ||
| 13 | Completely push slider (5) toward front to stop. The tilting bracket (1) moves to the tilt position. | ||
| 14 | Install tilting/sliding roof drive unit | AR77.20-P-3010CW | |
| 15 | Install water drain rail | AR77.20-P-1997CW |
