Remove/install tilting/sliding roof motor - AR77.20-P-3010CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212, 218 with CODE (414) Power glass tilting/sliding roof

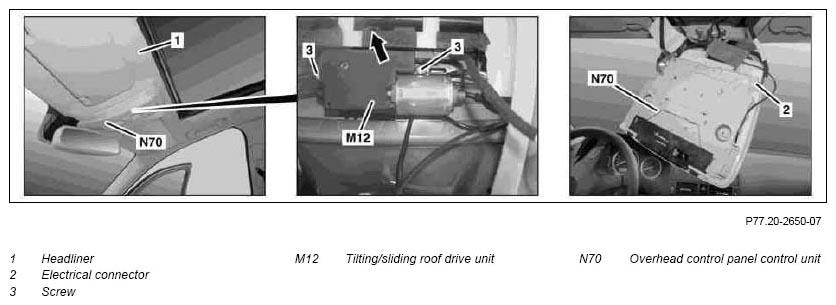

Shown on model 204
| Remove/install | |||
| 1 | Unclip overhead control panel control unit (N70) from headliner (1) and allow to dangle with electrical lines still attached | AR82.20-P-1000CW | |
| 2 | Disconnect electrical connector (2) from overhead control panel control unit (N70) | ||
| 3 | Remove bolts (3, arrow) and remove tilting/sliding roof drive unit (M12) | Rechargeable drill/screwdriver gotis://G_58.0_01.1 |
|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 4 | Install in the reverse order | ||
| 5 | Normalize tilting/sliding roof | Then move tilting/sliding roof to tilt position "OPEN" until end position is reached. Continue to hold tilting/sliding roof for min. 1 s in this position. Then close tilting/sliding roof. |
|
| 6 | Connect Star Diagnosis, read out fault memory, perform teach-in run for tilting/sliding roof anti-pinch protection | AD00.00-P-2000-04A |
