Remove/install water drain rail for sliding roof - AR77.20-P-1997CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 /2, 212 with CODE (414) Power glass tilting/sliding roof

Shown on model 204.0

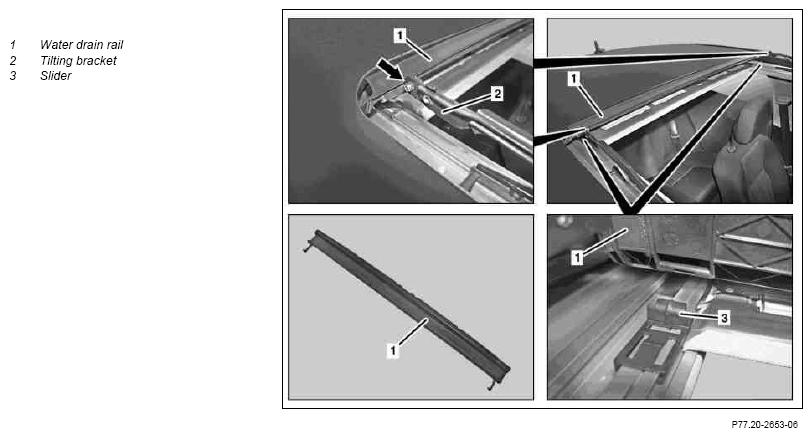

Fig 1: Identifying Water Drain Rail, Tilting Bracket And Slider

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove tilting/sliding roof panel		AR77.20-P-2852CW
2	Unclip water drain rail (1) from left and right tilting bracket (2) (arrow)
3	Unclip water drain rail (1) from left and right slider (3) and remove.	When water drain rail (1) is removed, do not move tilting/sliding roof toward rear. This can cause the sliders (3) to be pushed toward the rear making it necessary to preposition them toward the front with great effort.
4	Install in the reverse order
