Remove/install front door lock - AR72.10-P-4011V
MODEL 171.4

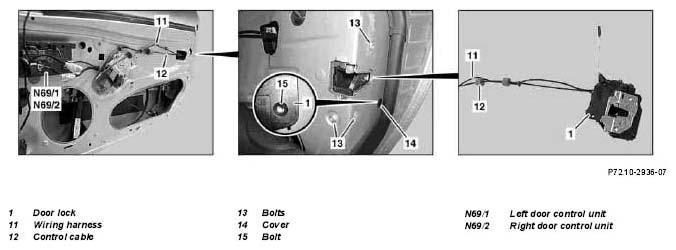

Shown on right front door

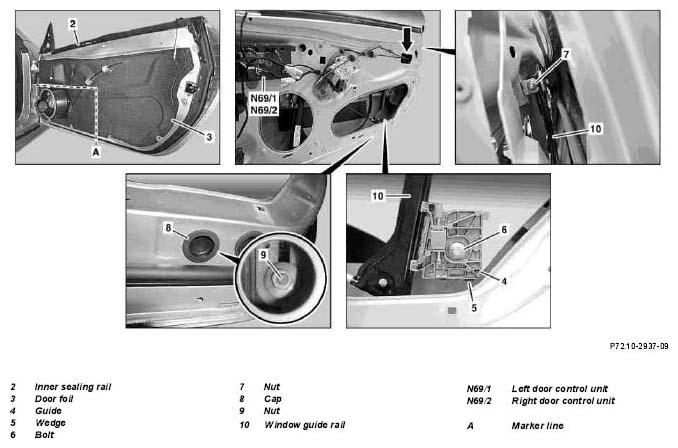

Shown on right front door
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove outer door handle from left or right front door | AR72.10-P-2400V | |
| 2 | Remove inner sealing rail (2) from left or right front door | AR72.10-P-1600V | |
| 3 | Loosen door foil (3) on inner door panel from rear at top to marker line (A) | AR72.10-P-1010V | |
| 4 | Connect power window switch on left door control module (N69/1) or right door control module (N69/2) and move crank window to bottom assembly position | ||
| 5 | Mark installation position of wedge (5) and bolt (6) on guide | ||
| 6 | Move crank window to upper assembly position | ||
| 7 | Loosen bolt (6) | *BA72.10-P-1009-01AB | |
| 8 | Slacken nut (7) | *BA72.10-P-1008-01AB | |
| 9 | Remove cap (8), mark installation position of nut (9) and unscrew nut (9) | ||
| *BA72.10-P-1008-01AB | |||
| 10 | Loosen guide (4) from crank window and lay toward front together with window guide rail (10) | ||
| 11 | Expose wiring harness (11) on inner door panel and disconnect electrical connector from left door control module (N69/1) or right door control module (N69/2) | ||
| 12 | Expose control cable (12) for inner door panel actuation from inner door panel | ||
| 13 | Remove bolts (13) | *BA72.10-P-1007-01AB | |
| 14 | Remove door lock (1) above access cover in inner door panel | ||
| 15.1 | Remove lock cover from door lock (1) | Only when replacing door lock (1). | |
| 16 | Install in the reverse order | ||
| Adjust | |||
| 17 | Remove cover (14) and loosen bolt (15) | ||
| 18 | Tighten bolt (15) and check clearance by actuating door handle, if necessary loosen bolt (15) again and tighten | ||
| 19 | Install cover (14) |
FRONT DOOR
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA72.10-P-1007-01AB | Bolt of door lock to front door | Nm | 7 |
| BA72.10-P-1008-01AB | Nut, power window to inner door panel | Nm | 9 |
| BA72.10-P-1009-01AB | Bolt, window to front power window | Nm | 9 |
