Remove/install inner sealing rail - AR72.10-P-1600V

MODEL 171.4

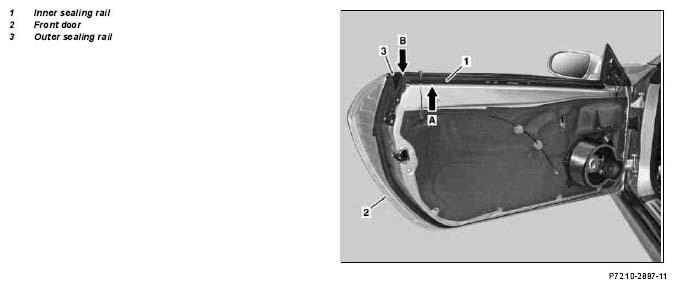

Fig 1: Identifying Inner Sealing Rail Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Completely open window in left or right front door (2)	See Operating Instructions
2	Remove door liner from left and right front door (2)		AR72.10-P-1000V
3	Unclip inner sealing rail (1) from rear (arrow A) toward front with mounting wedge from front door (2).	Installation:  Ensure that outer sealing rail (3) is properly positioned in relation to inner sealing rail (1) (arrow B)	Figure
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
