Remove/install exterior door handle on front door - AR72.10-P-2400V

MODEL 171.4

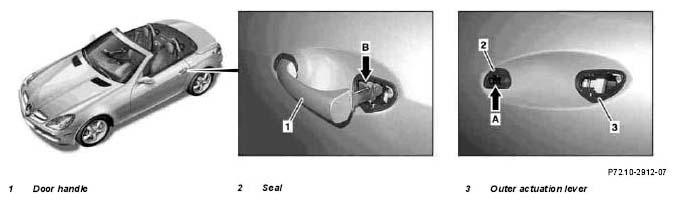

Fig 1: Identifying Exterior Door Handle Components On Front Door

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove outer door handle guide from left or right front door		AR72.10-P-2410V
2	Pull door handle (1) toward rear and remove from front door
	Install
3	Install front door handle (1) in front door (arrow A)
4	Pull outer actuation lever (6) toward outside with pulling hook and install door handle (1) in outer actuation lever (arrow B)		Fig 2
5	Slide door handle (1) toward front and check door handle (1) for proper function	Ensure that seal (2) is seated correctly.
6	Install outer door handle guide on left or right front door		AR72.10-P-2410V

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
