Remove/install door sealing frame - AR72.10-P-2120V
MODEL 171.4

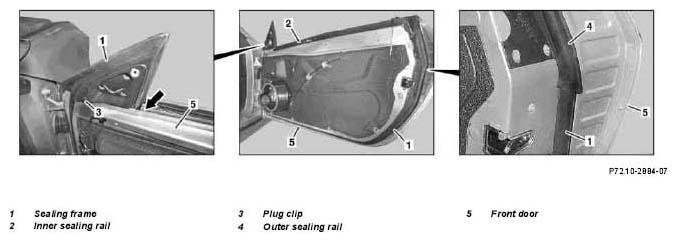

Shown on right front door
| Remove | |||
|---|---|---|---|
| 1 | Remove left and right outside mirror | AR88.70-P-9000V | |
| 2 | Remove left or right inner sealing rail (2) | AR72.10-P-1600V | |
| 3 | Remove clip (3) from mirror triangle | ||
| 4 | Loosen sealing frame (4) from outer sealing rail (4) and remove from front door (5) from rear toward front | ||
| 5 | Remove sealing frame (1) from mirror triangle and remove from front door (5) | ||
| Install | |||
| 6 | Remove glue residues from front door (5) and clean gluing surfaces | Cleaner | *BR00.45-Z-1025-04A |
| 7 | Pull sealing frame (1) over mirror triangle | ||
| 8 | Position sealing frame (1) in window guide rail (arrow) with long wedge | Figure | |
| 9 | Glue sealing frame (1) to front door (5) from front toward rear and press on uniformly with roller | Figure | |
| 10 | Connect sealing frame (1) with outer sealing rail (4) | ||
| 11 | Install clip (3) on mirror triangle | ||
| 12 | Install left and right inner sealing frame (2) | AR72.10-P-1600V | |
| 13 | Install left or right outside mirror | AR88.70-P-9000V |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
