Remove/install complete outside rearview mirror - AR88.70-P-9000V

MODEL 171.4

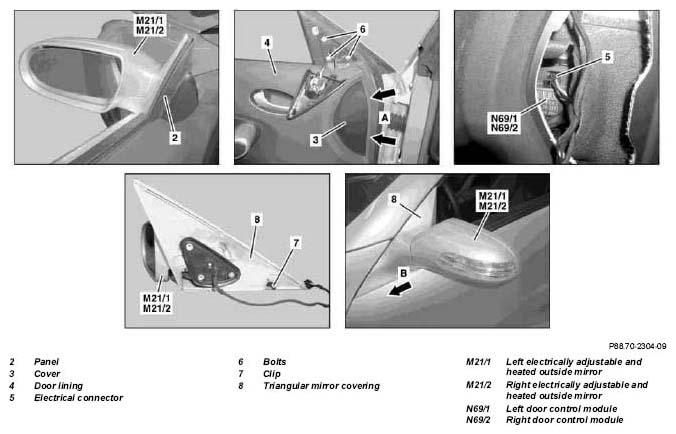

Fig 1: Identifying Complete Outside Rearview Mirror Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unclip paneling (2) from mirror triangle with mounting wedge and lay down to side		Figure
2	Unclip cover (3) from non-visible catch hooks (arrows) on door liner (4) with mounting wedge and remove		Figure
3	Disconnect electrical connector (5) from left door control module (N69/1) and right door control module (N69/2)
4	Remove bolts (6)	Prevent screws (6) from falling.
			*BA88.70-P-1001-01A
5	Slide left electrically adjustable heated outside rearview mirror (M21/1) and right electrically adjustable heated outside rearview mirror (M21/2) toward front when door is open and remove	Slide left electrically adjustable heated outside rearview mirror (M21/1) and right electrically adjustable heated outside rearview mirror (M21/2) toward front until mirror triangle paneling (8) is moved out of clip (7). Clip (7) remains on door.
6	Install in the reverse order

OUTSIDE MIRROR

Number	Designation		Model 171
BA88.70-P-1001-01A	Screw for outside rearview mirror on front door	Nm	2.5

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
