Remove/install bearing bracket of front door handle - AR72.10-P-4012V

MODEL 171.4

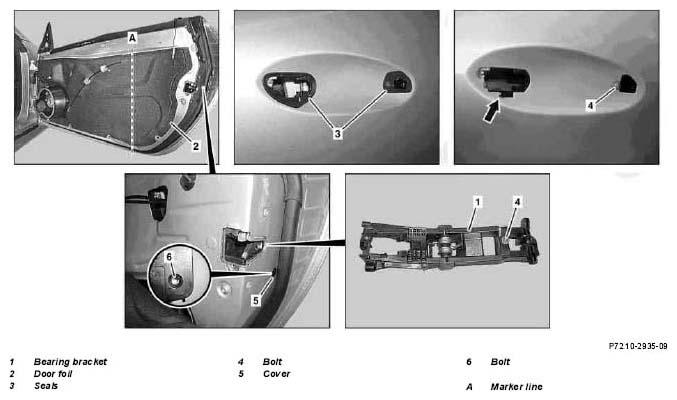

Fig 1: Identifying Bearing Bracket Of Front Door Handle Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove door liner from left or right front door		AR72.10-P-1000V
2	Connect power window switch to door control module and completely close crank window
3	Loosen door foil (2) on inner door panel from rear to marker line (A)		AR72.10-P-1010V
4	Remove outer door handle from left or right front door		AR72.10-P-2400V
5	Take off seals (3)	Note correct installation positions.
6	Loosen bolt (4)
7	Remove bearing bracket (1) through access cover on inner door panel	Installation:  Hook bearing bracket (1) into door paneling (arrow)
8	Install in the reverse order
	Adjust
9	Remove cover (5) and loosen bolt (6)	The clearance is adjusted automatically.
10	Tighten bolt (6) and check clearance by actuating door handle, if necessary loosen bolt (6) again and tighten	When actuating door handle slight play should be present before opening the door lock
11	Install cover (5)
