Remove/install door liner on front door - AR72.10-P-1000V

MODEL 171.4

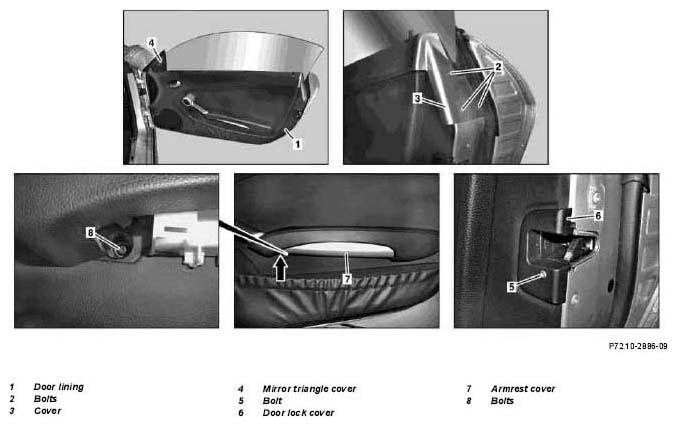

Fig 1: Identifying Front Door Liner Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on right front door

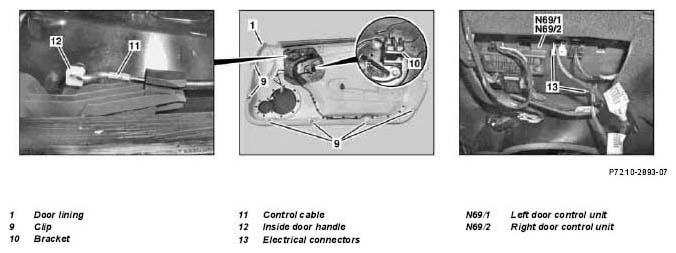

Fig 2: Identifying Front Door Liner Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on right front door

	Remove/Install
1	Lower window in left or right front door	See Operating Instructions
2	Unscrew bolts (2) and remove cover (3)
3	Remove mirror triangle cover (4) from front door		AR72.10-P-3001V
4	Unscrew bolt (5) and remove door lock cover (6)	Installation:  Guide for door lock cover (6) should engage in inner door panel.
5	Unclip armrest cover (7) with mounting wedge (arrow) and unscrew bolt (8) below	Installation:  First position armrest cover (7) on door liner (1) and then clip into armrest upward	Figure
6	Press door liner (1) off of mounting clips (9) on inner door panel from front to rear with mounting wedge	Move mounting wedge (9) directly onto each retaining clip (9) and ensure that the retaining lugs of the mounting clips do not tear out of the door liner.
		Installation:  Replace damaged mounting clips (9).	Figure
7	Lift door liner (1) upward out of inner sealing rail and simultaneously pull away from lower inner door panel.	Installation:  Bracket (10) for door liner (1) should engage on inner door panel
8	Lift door liner (1) off of inner door panel until control cable (11) is accessible.
9	Unhook control panel (11) from inner door handle (12).
10	Disconnect electrical connectors (13) from left door control module (N69/1) or right door control module (N69/2)
11	Remove liner (1)
12	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
