Replace tires - AR40.10-P-1030A

MODEL 124, 129, 140, 163, 164, 168, 170, 171, 202, 203, 208, 209, 210, 211, 215, 230

MODEL 220 except CODE (Z07) Top protection with PAX emergency running system wheel

MODEL 240 except with CSR emergency running system wheel

MODEL 414

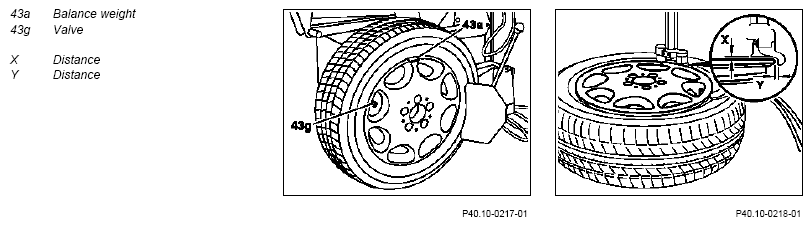

Fig 1: Measuring Distances On Tire
G10110114Courtesy of MERCEDES-BENZ USA

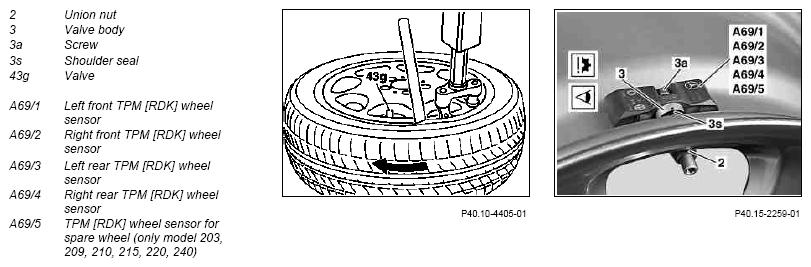

Fig 2: Overview Of TPM (RDK) Wheel Sensor
G10110115Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

1.7.08 "General information - Tires" added
"Repair materials" added Operation step 8, 15, 22
DISASSEMBLING Disassemble
NOTES Information on tires/rims   AH40.10-P-9411-01A
IMPORTANT Tires - General information   AH40.10-P-1020-01D
1 Remove wheel.
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary Model 163 AP40.10-P-4050GH
REFER TO MAINTENANCE Model 171 AP40.10-P-4050V
REFER TO MAINTENANCE Model 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414 AP40.10-P-4050Z
2.1 Detach jammed balance weight (43a) with assembly tool SPECIAL TOOL Fig 4
2.2 Remove bonded balance weight (43a) with removal tool NOTES Do not use hard, pointed or sharp-edged tools in order to avoid damaging the surface of the disk wheel.
SPECIAL TOOL Fig 3
Loctite 7200 *BR00.45-Z-1038-04A
3 Remove valve element from valve (43g)
4 Drain TIREFIT tire sealant from tire After using TIREFIT tire sealant
Models 163, 164, 168, 170, 171, 203, 209, 211, 230, 240, 414 AR40.10-P-1080A
5 Position the press-off blade of the tire mounting device on the tire bead flank NOTES Do not position press-off blade on the tire flank otherwise the carcass will be damaged. On vehicles with code (470) Tire pressure monitoring system (standard) or code (475) Tire pressure monitoring system (Beru), do not position the bead breaker shovel on the inside or outside of the tire in the area of the valve (43g), otherwise the TPM wheel sensor (A69/1 to A69/5) will be damaged.
IMPORTANT Position the blade on the bead flank opposite the valve (43g).
Tire mounting device for passenger cars with PAX system, without CSR system

6 Press the inner and outer tire sidewall over the safety humps in the drop center of the disk wheel
7 Fasten disk wheel on tire mounting device
8 Apply mounting paste to disk wheel flange and tire beads
Wide-tire mounting paste *BR00.45-Z-1066-06A
9 Position disk wheel on the tire mounting device IMPORTANT Position the disk wheel so that the valve (43g) is 10 cm behind the assembly head, viewed in the direction of rotation (arrow) of the disk wheel.
10 Align assembly head at a small distance (X, Y) to the disk wheel
11 Using the assembly lever, pry the tire beads over the assembly lug and detach the tire from the disk wheel NOTES On vehicles with code (470) Tire pressure monitoring system (standard) or code (475) Tire pressure monitoring system (Beru), no forces should act on the TPM wheel sensor (A69/1 to A69/5), otherwise it will be damaged.
IMPORTANT A spare tire with a collapsible tire is only available as an assembly. The spare tire with collapsible tire can only be replaced complete. In the event of damage, detach collapsible tire and dispose of separately from the disk wheel.

INSPECT Checking
12 Check condition of disk wheel   AR40.10-P-1010-01A
13.1 Check TPM wheel sensor (A69/1 to A69/5), valve body (3) and hump seal (3s, Beru system only to 08/2004) for damage in the installed condition On vehicles with code (470) Tire pressure monitoring system (standard) or code (475) Tire pressure monitoring system (Beru)
NOTES Do not remove TPM [RDK] wheel sensor (A69/1 to A69/5). Do not retighten bolt (3a, Beru system only) and union nut (2) otherwise the TPM wheel sensor (A69/1 to A69/5) will be damaged.
IMPORTANT Replace all components if the bolt (3a) or union nut (2) of the TPM wheel sensor (A69/1 to A69/5) are visibly loose.
IMPORTANT Replace TPM wheel sensor (A69/1 to A69/5) in the event of visible damage or use of TIREFIT tire sealant (Beru system only): ↓
Remove/install wheel sensor:

Beru system AR40.15-P-0080A
Siemens system AR40.15-P-0080AS
Schrader system
IMPORTANT When doing so, observe the tightening torques for the different gasket versions:
AR40.15-P-0080CW
REFER TO COMPONENT MODIFICATIONS Gasket of valve body modified. BT40.15-P-0080-01A
13.2 Install new valve (43g). Without tire pressure monitor
CLEAN Clean
14 Clean TPM [RDK] wheel sensor (A69/1 to A69/5) On vehicles with code (470) Tire pressure monitoring system (standard) or code (475) Tire pressure monitoring system (Beru)
NOTES Wipe off dirt with a clean, lint-free cloth only. Do not use compressed air, solvents or cleaners, as this will damage the TPM [RDK] wheel sensor (A69/1 to A69/5).

ASSEMBLING Assemble
15 Apply mounting paste to disk wheel flanges and tire beads of new tire
Wide-tire mounting paste *BR00.45-Z-1066-06A
16 Position disk wheel on the tire mounting device IMPORTANT Position the disk wheel so that the valve (43g) is approximately 180° opposite the mounting head.
Tire mounting device for passenger cars with PAX system, without CSR system

17 Put new tire at an angle on the disk wheel and align the mounting head at a small distance (X, Y) to the disk wheel IMPORTANT Observe running direction on unidirectional tires. On vehicles with mixed tires observe the correct assignment of the tire to disk wheel.
18 Use the tire mounting device to pull the tire over the hump on the disk wheel NOTES With tire pressure monitoring system, code (470) Tire pressure monitoring system (standard) or code (475) Tire pressure monitoring system (Beru):
No forces should act on the TPM wheel sensor (A69/1 to A69/5), otherwise it will be damaged.
IMPORTANT Load the tire beads as little as possible.

19 Align the match points of the tire and disk wheel relative to one another
20 Remove disc wheel with tire from tire mounting device
21 Remove valve element from valve (43g)
22 Inflate tires IMPORTANT Inflation pressure max. 3 bar.
IMPORTANT The tire beads must slide evenly over the safety bead seats of the disk wheel; if this is not the case, apply mounting paste to the tire beads again.

Wide-tire mounting paste *BR00.45-Z-1066-06A
23 Turn valve element into valve (43g)
24 Adjust tire inflation pressure to correct pressure. IMPORTANT See tire pressure label in the vehicle's fuel filler flap.
25 Balance wheel All except model 164 AR40.10-P-1040A
Model 164 AR40.10-P-1040GZ
26 Mount wheel
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary Model 163 AP40.10-P-4050GH
REFER TO MAINTENANCE Model 171 AP40.10-P-4050V
REFER TO MAINTENANCE Model 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414 AP40.10-P-4050Z
27.1 Activate tire pressure loss warning: Vehicle with code (477) Tire pressure loss warning:
Model 171
Model 209, 211, 230
AR54.30-P-1000-02RAV
27.2 Activate the tire pressure monitoring system Vehicles with code (475) Tire pressure monitoring system:
Model 211 AR54.30-P-1000-02RAT
Model 215, 220 AR54.30-P-1000-02RAM
Model 230 AR54.30-P-1000-02RAR
Model 240 AR54.30-P-1000-02RAH
REFER TO BASIC KNOWLEDGE Tire pressure monitor (RDK) activation Model 210 GF40.15-P-0001-02A
Fig 3: Identifying Removal Tool (129 589 00 59 00)
G07472756Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Tool (124 589 17 63 00)
G07472757Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200
BR00.45-Z-1066-06A Wide-tire mounting paste
