Remove/install wheels, rotate if necessary - AP40.10-P-4050Z

MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240

MODEL 414

Left illustration

Fig 1: Identifying Wheels Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Right figure

Fig 2: Identifying Wheels Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Remove
1	Lift vehicle on vehicle lift	MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240 MODEL 414
		MODEL 164	AR00.60-P-1000GZ
		MODEL 203, 209	AR00.60-P-1000P
		MODEL 211	AR00.60-P-1000T
2	Remove hubcaps	Vehicles with hubcaps
3	Unscrew wheel bolts and remove wheel-and-tire assemblies	MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240 MODEL 414 MODEL 164, 240 Remove wheel and tire assemblies using wheel lift. Wheel jack/wheel lift truck
		MODEL 230 Socket wrench For modified wheel bolts: ↓ Install correct version.	Fig 3
		MODEL 210	BT40.10-P-0001-01A
	Check
4	Check tires for signs of damage and make sure that they are in good condition		AP40.10-P-4051Z
5	Clean and check wheel bolt connection components, then protect against corrosion	MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240 MODEL 414
		MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240 Before mounting a wheel-and-tire assembly all  the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle.	AP40.10-P-4050-01A
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
	Install

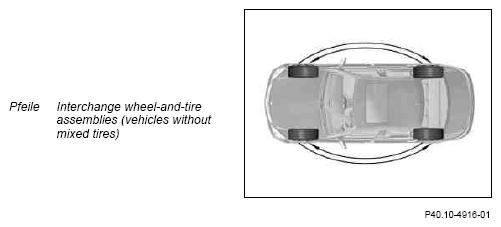

6	Change round wheel-and-tire assemblies on front and rear axles	If necessary, subject to separate repair order and only for vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.

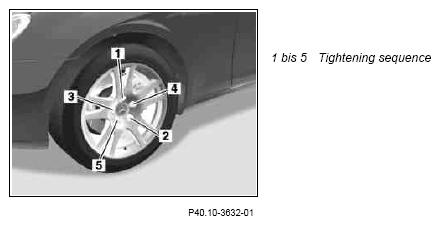

7	Mount wheel-and-tire assembly and tighten wheel bolts	MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240 MODEL 414 MODEL 164, 240 Mount wheel and tire assemblies using wheel lift. Observe the tightening sequence (1 to 5) and tightening torque.
		Except MODEL 164 and MODEL 210 with CODE 979 (Special protection version)	*BA40.10-P-1001-01A
		MODEL 210 with CODE 979 (Special protection version)	*BA40.10-P-1001-01B
		MODEL 164	*BA40.10-P-1001-01J
		MODEL 230 Socket wrench For modified wheel bolts: ↓ Install correct version.	Fig 3
		Wheel bolts modified MODEL 210	BT40.10-P-0001-01A
8	Lower vehicle with lifting platform
9	Correct tire pressure of front and rear axle tires
		MODEL 124, 129, 140, 164, 168, 170, 202, 203, 208, 209, 210, 211, 215, 230 MODEL 220 without CODE Z07 (Top protection) with PAX system emergency wheelMODEL 240 except with CSR system limp-home wheelMODEL 414	AR40.10-P-1030A
		MODEL 220 with CODE 979 (Special protection version)	AR40.10-P-1030MB
		MODEL 240with CSR system limp-home wheel In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order.	AR40.10-P-1030CSR
10	Mount hubcaps	Vehicles with hubcaps Check for correct positioning of hubcap to valve and for correct seating. Otherwise the valve may be damaged or the hubcap may be lost.
11	Activate the tire pressure monitoring system
		MODEL 164	AR54.30-P-1000-02GZA
		MODEL 211	AR54.30-P-1000-02RAT
		MODEL 215, 220	AR54.30-P-1000-02RAM
		MODEL 230	AR54.30-P-1000-02RAR
		MODEL 240	AR54.30-P-1000-02RAH
		MODEL 210.074/274 Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.	GF40.15-P-0001-02A

Fig 3: Identifying Socket Wrench (199 589 01 09 00)

Courtesy of MERCEDES-BENZ USA
