Check track rod and drag link linkage for play, check rubber boots - AP46.00-P-4653TX

MODEL 219

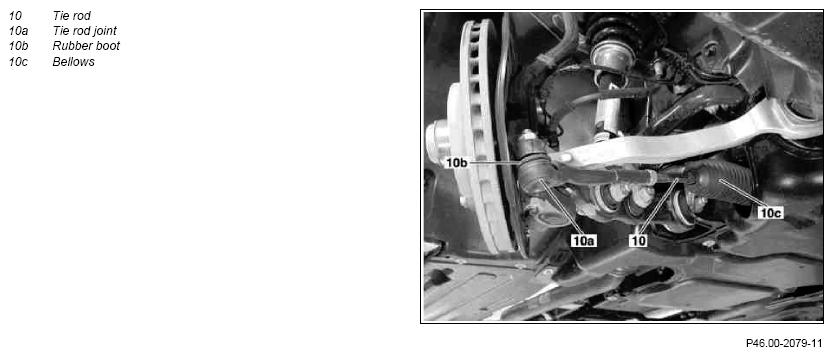

Fig 1: Checking Track Rod And Drag Link Linkage For Play

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0009-01A
1	Turn key in ignition lock into position 0
2	Raise vehicle with lifting platform
	Lift/jack up vehicle		AR00.60-P-1000TX
3	Check tie rod joint (10a) of right and left tie rod (10).	Check tie rod joint (10a) for play by pulling and pushing vigorously, if there is play: ↓
		Replace track rod.	AR46.40-P-0200TX
4	Check rubber boot (10b) of tie rod joints.	Check rubber boot (10b) for leaks and condition, if necessary: ↓
		Replace track rod.	AR46.40-P-0200TX
5	Check left and right bellows (10c)	Do not check bellows by pressing in or around the beads as this damages the plastic resulting in leaks. Check bellows for cracks, intrusions and chafing marks by turning the steering to left and right lock. ↓ If damage is present:
		Replace bellows.	AR46.40-P-0400TX
6	Lower vehicle
	Lift/jack up vehicle		AR00.60-P-1000TX
