Remove/install engine hood - AR88.40-P-3000T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
MODIFICATION NOTES
| 28.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

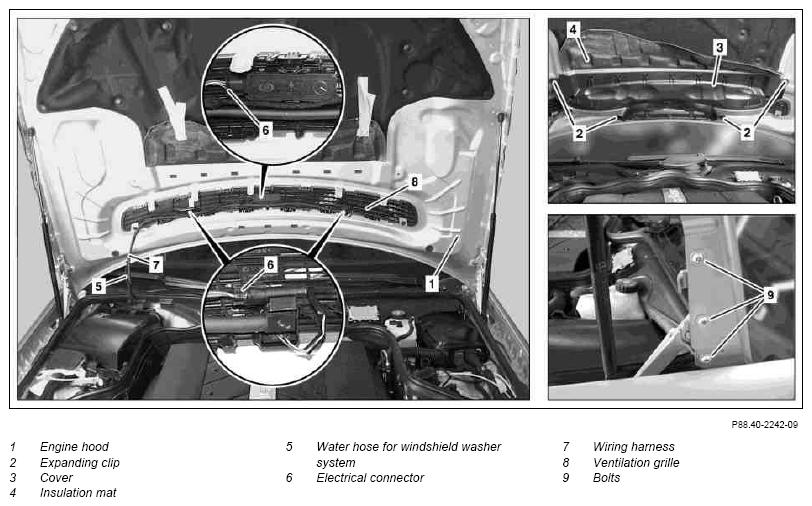

| 1 | Open engine hood (1) and raise to vertical position | AR88.40-P-1000T | |
| 2 | Remove expanding clip (2) and unclip cover (3) from engine hood (1) | ||
| 3 | Detach water hose for windshield washer system (5) to the washer nozzles | ||
| 4 | Separate electrical connectors (6) | ||
| 5 | Detach water hose for windshield washer system (5) and wiring harness (7) from air register (8) | ||
| 6 | Remove both gas-operated struts on the engine hood (1) | ||
| Remove/install gas pressure strut on engine hood | AR88.40-P-3010T | ||
| 7 | Unscrew bolt (9) on left and right engine hood hinge | ||
| 8 | Install in the reverse order | ||
| 9 | Adjust engine hood (1) | AR88.40-P-3020T |
