Adjust engine hood - AR88.40-P-3020T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
| Remove | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

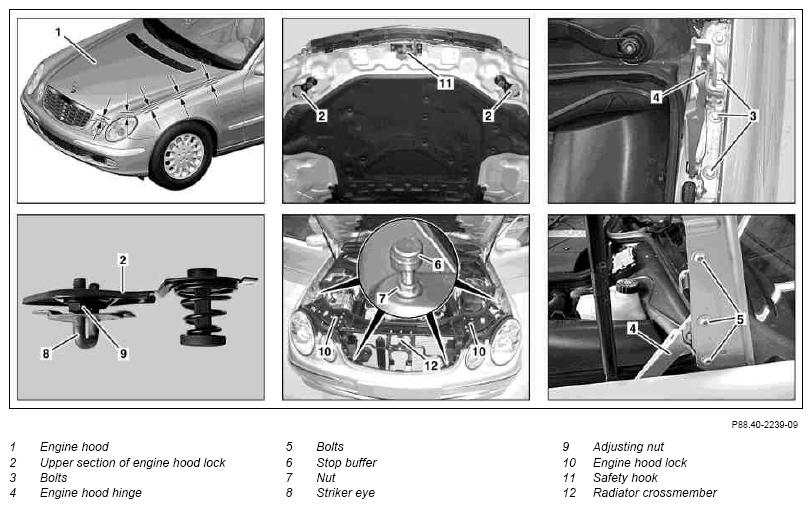

| 1 | Open engine hood (1) | ||
| 2 | Remove both upper sections of engine hood lock (2) | AR88.40-P-3200T | |
| Adjust in lateral direction | |||
| 3 | Loosen bolt (3) on both engine hood hinges (4) and adjust engine hood (1) in lateral direction. | Gap between engine hood and fender, dimension "A" | *BE60.00-P-1001-01F |
| *129589032100 | |||
| 4 | Tighten bolts (3) | *BA88.40-P-1008-01A | |
| Adjust in longitudinal direction | |||
| 5 | Loosen bolts (5) on both engine hood hinges (4) and adjust engine hood (1) in longitudinal direction | *129589032100 | |
| 6 | Screw tight bolts (5) | *BA88.40-P-1007-01A | |
| Adjust height | |||
| 7 | Close engine hood (1) and lay down on stop buffers (6). | ||
| 8 | Check transition of engine hood (1) to front fenders and engine hood gap (1) to headlamp. If required, loosen nuts (7) and adjust height of stop buffers (6) | ||
| *BE60.00-P-1001-01F | |||
| *129589032100 | |||
| 9 | Open engine hood (1) | ||
| 10 | Install upper sections of engine hood lock (2) | *BA88.40-P-1004-01A | |
| 11.1 | Adjust height of striker eye (8) on upper section of engine hood lock (2) with adjustment nut (9) | Only if necessary. |
|
| 12 | Close engine hood (1) and ensure that engine hood locks (10) arrest. For this purpose pull engine hood (1) upward with a jerk. | ||
| 13 | Unlock engine hood (1) and check arrest of safety hook (11) on radiator crossmember (12) | ||
| 14 | Repair paint damage on bolts (3, 5) and adjustment nuts (9) with touch-up pencil |
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.0 | Model 211.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01F | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (+1) | 4 (±0.5) | ||
| Radiator grille to bumper | Dimension "C" | mm | 5.5 (+1) | 5.5 (±1) | ||
| For figure, see | AR60.00-P-0700-01T | AR60.00-P-0700-01T A | ||||
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 211.6 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01F | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±0.5) | ||
| Radiator grille to bumper | Dimension "C" | mm | 5.5 (±1) | ||
| For figure, see | - | ||||
ENGINE HOOD
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA88.40-P-1004-01A | Bolt on upper section of engine hood lock | Nm | 8 |
| BA88.40-P-1007-01A | Bolt, engine hood to engine hood hinge | Nm | 8 |
| BA88.40-P-1008-01A | Bolt, engine hood hinge to wheelhouse liner | Nm | 12 |
