Install new radial sealing ring at drive pinion gear (with differential installed) - AR35.31-P-0530TA

Rear axle differential dia. 187 in MODEL 211.004

Rear axle differential dia. 187 in MODEL 211.041 /042 /052 /061 /080 /083 /084 /089 /090 /241 /242 /252 /261 /280 /283 /284 /289 /290

Rear axle differential dia. 200 in model 211.007 /008, 211.054 /056 as of 1.6.06, 211.057 /208, 211.254 /256 as of 1.6.06, 211.257 /608

Rear axle differential dia. 215 in model 211.020 /022 /029, 211.070 as of 1.9.03, 211.072, 211.076 as of 1.9.03, 211.077 /220 /222, 211.270 as of 1.9.03, 211.272 /276 /277 /620

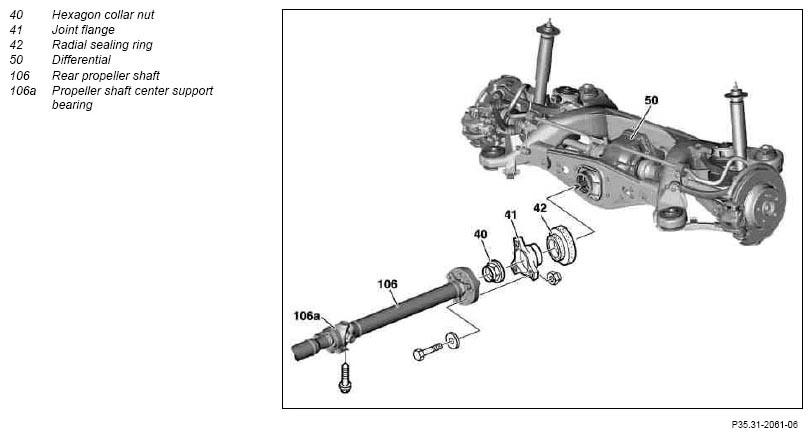

Fig 1: Identifying Rear Propeller Shaft Components
G07505736Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

11.8.06 Filling capacity, Specifications for Operating Fluids Model 211.077/277, 230.472/474/479 *BF35.31-P-1004-01L
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Deactivate SBC brake system using STAR DIAGNOSIS. Only vehicles with Sensotronic Brake Control (SBC)
IMPORTANT The following steps should be run through in STAR DIAGNOSIS:
Select menu item "SBC Sensotronic Brake
Control"/"Deactivate 'SBC' system".
Then process all the individual steps from top to bottom.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
2 Empty rear air springs using STAR DIAGNOSIS Only vehicles with AIRmatic (semi-active air suspension), code 489. AR32.22-P-1500-04T
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system
NOTESInstallation:  The filling process of the air springs should be observed otherwise they will be destroyed: ↓
    Fill air spring with vehicle at design level. AR32.22-P-1500-03T
    TORQUE SPECIFICATION *BA32.25-P-1008-04B
    TORQUE SPECIFICATION *BA32.25-P-1009-04B
    SPECIAL TOOL Socket wrench bit Figure
    Electronic inclinometer (CM 09606), refer to GOTIS http://gotis.aftersales.mercedes-benz.com
3 Lift vehicle on lifting platform.   AR00.60-P-1000T
4 Detach the rear propeller shaft (106) from the rear axle center assembly (50) IMPORTANT Flex disk remains on propeller shaft.
IMPORTANTInstallation:  Attach the propeller shaft. AR41.10-P-0050-04I
TORQUE SPECIFICATION *BA41.10-P-1002-01A
5 Loosen fitted sleeves of the flexible coupling on the flange   AR41.10-P-0050-09DA
REFER TO SHOP-MADE TOOLS Drift for loosening fitting sleeves in flex disks.   WF58.50-P-4110-01A
6 Remove the screws of the propeller shaft intermediate bearing (106a) and remove the rear propeller shaft (106) TORQUE SPECIFICATION *BA41.40-P-1001-01A
    IMPORTANTInstallation:  Assemble propeller shaft in correct position. Only tighten the bolts of the propeller shaft intermediate bearing after attaching the flexible coupling to the rear axle center assembly (50):
↓
    Connect sections of propeller shaft. AR41.10-P-0050-05DA
REFER TO CAPACITIES & SPECIFICATIONS Long-life grease (NLGI grade 2) Sheet 266.2 BB00.40-P-0266-02A
7 Measure and note total friction torque of drive pinion Only differential, 198 mm dia.
SPECIAL TOOL Connection piece Fig 5
SPECIAL TOOL Torque meter
Wrench bit 41 mm hexagon 3/4 inch four-point		 Fig 6
8 Unscrew hexagon collar nut (40) IMPORTANT Do not remove the collar protection when slackening hexagon collar nut.
IMPORTANTInstallation on 198 mm dia. rear axle differential:  Replace hexagon-collar nut and tighten in stages until the total friction torque measured  previously is attained.
IMPORTANTInstallation:  187 mm or 215 mm dia. rear axle differential:
    TORQUE SPECIFICATION *BA35.31-P-1001-01A
    SPECIAL TOOL Pin wrench Fig 2
    SPECIAL TOOL Socket wrench bit
IMPORTANT For better control when loosening the hexagon-collar nut press a shop-made bushing into the commercially available socket:		 Figure
REFER TO SHOP-MADE TOOLS   Pressing bush for wrench socket
IMPORTANTInstallation:  Replace hexagon collar nut.		 WF58.50-P-3531-02A
    IMPORTANTInstallation:  Secure hexagon collar nut on joint flange for drive pinion. AR35.31-P-0530-01B
REFER TO SHOP-MADE TOOLS Chisel for securing collar nut on joint flange   WF58.50-P-3531-01A
9 Detach joint flange (41). IMPORTANT If necessary, use puller.
SPECIAL TOOL Puller Fig 3
10 Use a suitable tool to lever radial sealing ring (42) out of rear axle differential (50) IMPORTANTInstallation:  Replace radial sealing ring, coat the lip with universal hypoid gear oil and press into the rear axle center assembly using a drift.
Rear axle differential, 187 mm dia:
    SPECIAL TOOL Drift
Rear axle differential dia. 200 mm:		 Fig 8
    SPECIAL TOOL Drift
Rear axle center assembly dia. 215 mm:		 Fig 7
    SPECIAL TOOL Drift Fig 9
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (SAE 85 W-90) Sheet 235.7 BB00.40-P-0235-07A
11 Install in the reverse order
12 Check oil level in rear axle differential and correct if necessary IMPORTANT Mixing of old universal hypoid gear oil and the new FE hypoid gear oil should be avoided due to the better fuel economy. AR35.31-P-0520-03I
    TORQUE SPECIFICATION *BA35.31-P-1002-02A
    FLUID SPECIFICATION *BF35.31-P-1003-01L
    FLUID SPECIFICATION *BF35.31-P-1004-01L
    FLUID SPECIFICATION *BF35.31-P-1006-01L
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
    Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
REFER TO COMPONENT MODIFICATIONS Oil filler/drain screw on rear axle differential modified   BT35.31-P-0015-01A
13.1 Activate SBC brake system using STAR DIAGNOSIS Only vehicles with Sensotronic Brake Control (SBC)
IMPORTANT The following steps should be run through in STAR DIAGNOSIS:
Select "Initial startup after repair"/"Remove/install brake pads" menu item.
Then process all the individual steps from top to bottom.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work Before starting engine, actuate brake pedal several times until the pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
13.2 Press the brake pedal several times until the brake pads contact the brake disks Vehicles with Adaptive Brake (ABR)
IMPORTANT Firm resistance should be noticeable at the brake pedal.
SUSPENSION STRUTS

Number Designation Model 211 AIRMATIC
BA32.25-P-1008-04B Nut, rear air spring at spring control arm Nm 150
BA32.25-P-1009-04B Air suspension pressure line at rear axle distributor Nm 2
PROPELLER SHAFT

Number Designation Model 211
BA41.10-P-1002-01A Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential. M10 Nm 40
M12 Nm 60
DIFFERENTIAL HOUSING

Number Designation Model 211
BA35.31-P-1002-02A Oil filler screw, differential Nm 50
PROPELLER SHAFT CENTER SUPPORT BEARING

Number Designation Model 211
BA41.40-P-1001-01A Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 25
Bolt with washer Nm -
Bolt with collar and self-centering tip Nm -
Bolt with collar and without self-centering tip Nm -
DIFFERENTIAL GEAR SET

Number Designation Model 211 with rear axle differential dia. 187/200/215 mm
BA35.31-P-1001-01A Collar nut, joint flange to drive pinion Nm >160
DIFFERENTIAL

Number Designation Model 211 except 211.077/277 Model 211.077/277, model 230.470/472/474/479
BF35.31-P-1001-01L Filling capacity 210 mm dia. rear axle differential in rear axle differential 210E Liters 1,6 -
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A -
BF35.31-P-1002-01L Filling capacity Rear axle differential dia. 198 mm Liters 1,1 -
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A -
BF35.31-P-1003-01L Filling capacity Differential Ø 187 mm Liters 1.0 -
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A -
BF35.31-P-1004-01L Filling capacity Differential Ø 215 mm Liters 1,2 1,2
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A BB00.40-P-0235-61A
BF35.31-P-1005-01L Filling capacity Rear axle center assembly dia. 240 mm in rear axle center assembly 240V Liters - -
Specifications for Operating Fluids Sheet - -
BF35.31-P-1006-01L Filling capacity 200 mm dia. rear axle differential in rear axle differential 200FE Liters 1,1 -
Specifications for Operating Fluids Sheet BB00.40-P-0235-07A -
Fig 2: Identifying Pin Wrench (129 589 01 07 00)
G07505737Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Puller (129 589 01 33 00)
G07505738Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Wrench Socket (211 589 00 09 00)
G07505739Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Connecting Piece (100 589 02 59 00)
G07505740Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Torque Meter (001 589 49 21 00)
G07505741Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Drift (140 589 08 15 00)
G07505742Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Drift (140 589 14 15 00)
G07505743Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Drift (211 589 04 15 00)
G07505744Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
