Remove/install rear panoramic glass roof gasket - AR77.21-P-0620T

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof

Shown on left side of vehicle

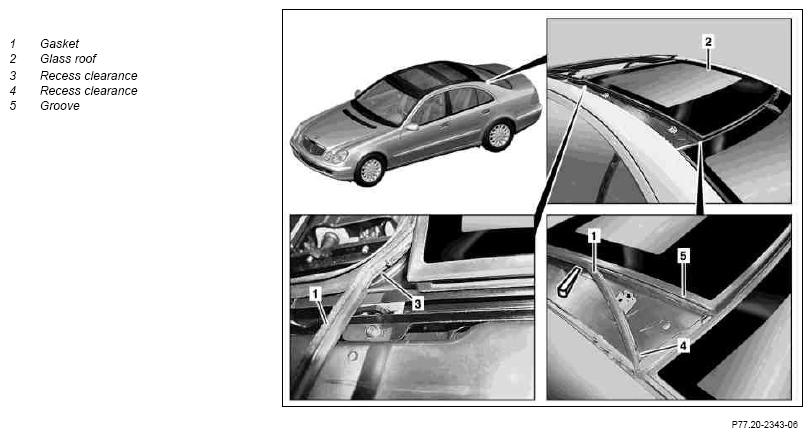

Fig 1: Identifying Rear Panoramic Glass Roof Gasket Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove panoramic roof water repellent		AR77.21-P-0050T
2	Remove front glass roof on panoramic roof*		AR77.21-P-0500T
3	Pull gasket (1) out of groove (5) on rear glass roof (2)
	Install
4	Clean groove (5) and lubricate	Antifriction agent	*BR00.45-Z-1010-06A
5	Lubricate clamping profile of gasket (1)	Antifriction agent	*BR00.45-Z-1010-06A
6	Insert gasket (1) into groove (5)	Align recess clearances (3, 4) of gasket (1) in relation to corresponding points on glass roof (2). Mounting wedge	Figure
7	Install front glass roof on panoramic roof*		AR77.21-P-0500T
8	Install panoramic roof wind deflector		AR77.21-P-0050T

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
