Remove/install panoramic roof water repellent* - AR77.21-P-0050T

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof*

Shown on left side of vehicle

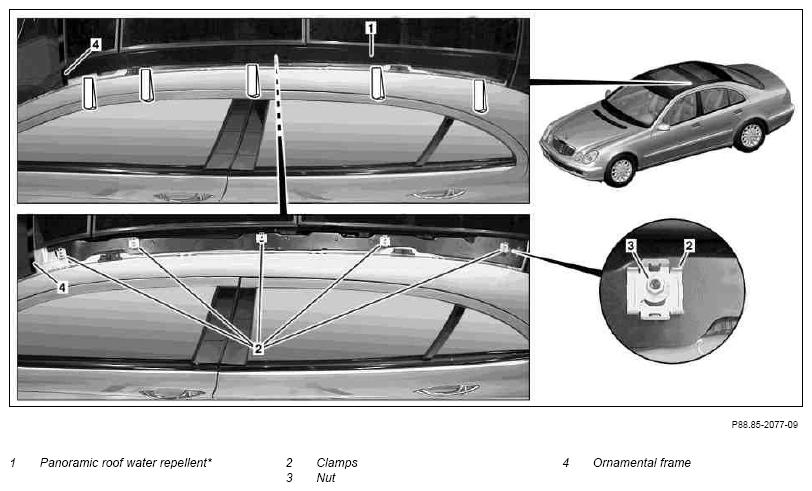

Fig 1: Identifying Panoramic Roof Water Repellent Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove water repellent.		AR88.85-P-2100T
2	Unclip panoramic roof water repellent (1) from rear to front with mounting wedge directly at clamps (2) and pull out below ornamental frame (4) on windshield*	Mounting wedge	Figure
	Install
3	Check clamps (2) for condition	Replace clamps (2) if necessary.
4	Guide panoramic roof water repellent (1) under ornamental frame (4) on windshield and lay loose on clamps (2)*
5	Align panoramic roof water repellent (1) and latch in clamps (2) *	Observe gap to glass roof, if necessary, remove panoramic roof water repellent (1), loosen nuts (3) and realign clamps (2).*
6	Remove water repellent		AR88.85-P-2100T
