Remove/install panoramic roof drive guide rail - AR77.21-P-0430T

MODEL 211.0 with CODE (413) Panorama sliding roof

MODEL 211.0

with CODE (413) Panorama sliding roof

with CODE (419) Solar module for panoramic roof

Illustrated on left side

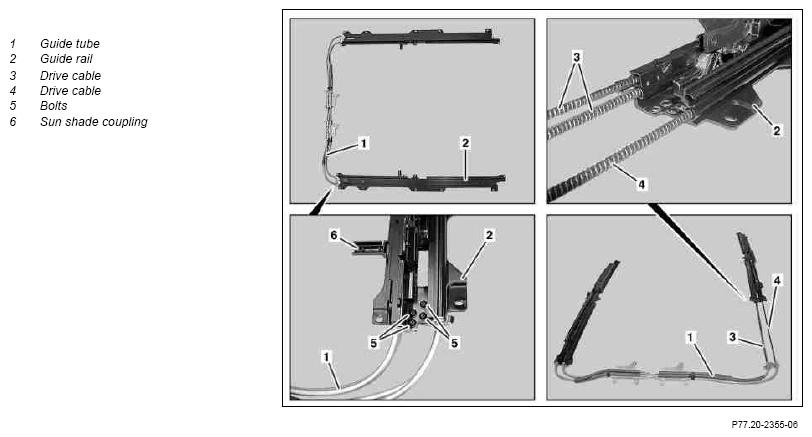

Fig 1: Identifying Panoramic Roof Drive Guide Rail Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove panoramic roof drive	On vehicles with code (413) Panoramic sliding roof	AR77.21-P-0400T
		On vehicles with code (413) Panoramic sliding roof and code (419) Solar module for panoramic glass roof	AR77.21-P-0400TA
2	Push sun shade coupling (6) out of the guide rail (2) to the front	Note correct installation position.
3	Unscrew screws (5)
4	Pull guide rail (2) out of guide tube (1) until the drive cables (3, 4) are accessible	Note correct installation position.
5	Pull drive cable (4) out of guide tube (1)	Note correct installation position.
6	Pull drive cable (3) out of guide rail (2) and place guide tube (1) aside	Note correct installation position.
7	Install in the reverse order
