Adjust front panoramic glass roof - AR77.21-P-0501T

MODEL 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof

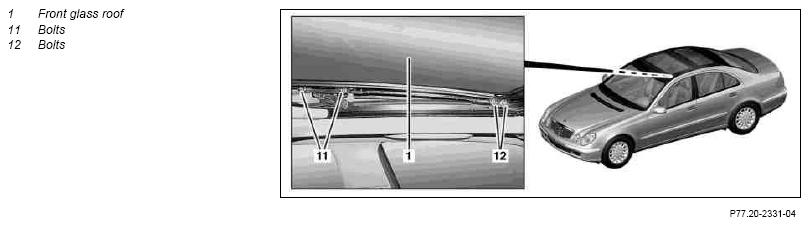

Fig 1: Identifying Front And Rear Glass Roof Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left side of vehicle with water repellent removed

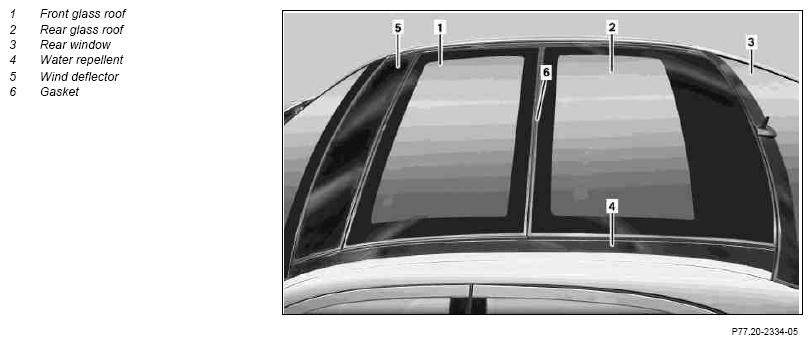

Fig 2: Identifying Front Glass Roof Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

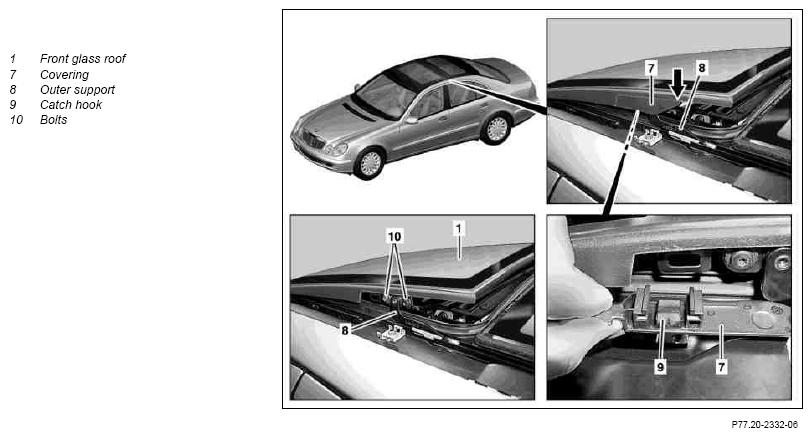

Fig 3: Identifying Front Glass Roof Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Adjust
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open panoramic roof	See Operating Instructions
2	Place suitable flat material on left and right below wind deflector (5) until it is as high as the water repellent (4) *	Use identical material thickness from 0.5 to 2.5 mm on left and right.*
3	Attach wind deflector (5) to water repellent (4) on side with strips of tape*	This allows the front glass roof (1) to be aligned more easily.*
4	Remove front glass roof rubber bellows (1) from panoramic roof on left and right sides of vehicle*		AR77.21-P-0530T
5	Loosen covering (7) on front glass roof (1) on left and right sides of vehicle (arrow)*
6	Release catch hooks (9) for covering (7) on left and right sides of vehicle from interior compartment*
7	Push covering (7) out toward rear on left and right sides of vehicle*
8	Loosen bolts (10) for exterior support (8) on left and right sides of vehicle *
9	Loosen bolts (11) and bolts (12) on front glass roof (1) on left and right sides of vehicle*
10	Close panoramic roof	See Operating Instructions
11	Move front glass roof (1) toward rear until it makes contact with the gasket (6) on the rear glass roof (2) *
12	Align front glass roof (1) with rear glass roof (2) *	Gap for height adjustment between front glass roof (1) and rear glass roof (2).*	*BE77.21-P-1001-01A
13	Tighten bolts (11) on left and right side of vehicle*	Tighten bolts (11) to specified torque later.*
14	Align front glass roof (1) with wind deflector (5) *	Gap for height adjustment between deflector wind (5) and front glass roof (1).*	*BE77.21-P-1001-01A
15	Tighten bolts (12) on left and right sides of vehicle*	Tighten bolts (12) to specified torque later.*
16	Remove adhesive strip from wind deflector (5)
17	Open panoramic roof	See Operating Instructions
18	Remove flat material below wind deflector (5) on left and right sides of vehicle*
19	Move panoramic roof to tilt position	See Operating Instructions
20	Tighten bolts (11, 12).		*BA77.21-P-1001-01A
21	Press outer support (8) upward, simultaneously press front glass roof (1) downward and tighten bolts (10) *	The front glass roof (1) should have only a minimum of play.*
			*BA77.21-P-1002-01A
22	Open panoramic roof and then close it again*	See Operating Instructions Pay attention to noises from panoramic roof mechanism.*
23	Check height adjustment and gap*	Repeat adjustments if required.*	*BE77.21-P-1001-01A
24	Move panoramic roof to tilt position	See Operating Instructions
25	Insert covering (7) from bottom and clip in*	Ensure that covering (7) makes good contact.*
26	Install front glass roof rubber bellows (1) on panoramic roof*		AR77.21-P-0530T
