Remove/install panoramic roof front glass roof rubber bellows - AR77.21-P-0530T
MODEL 203.7, 211.0 with CODE (413) Panoramic sliding roof
MODEL 211.0
with CODE (413) Panoramic sliding roof
with CODE (419) Solar module for panoramic roof

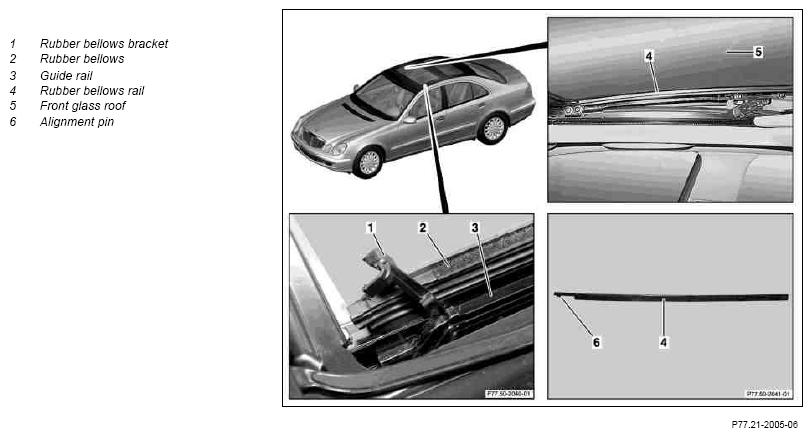

Shown on model 211.0
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Completely open front glass roof (5). | ||
| 2 | Unclip rubber bellows bearing (1) at front and pivot upward. | ||
| 3 | Unclip rubber bellows bearing (1) at rear and remove. | ||
| 4 | Unclip rubber bearing (2) from guide rail (3) starting at rear. | ||
| 5 | Pull rubber bellows (2) out of rubber bellows rail (4) and remove. | ||
| 6 | Move front glass roof (5) to pop-up position | ||
| 7 | Unclip rubber bellows rail (4) from front glass roof (5), starting at rear, and remove. | ||
| 8 | Install in the reverse order |
