Remove/install rear door lock - AR72.12-P-2510T

MODEL 211.0/2

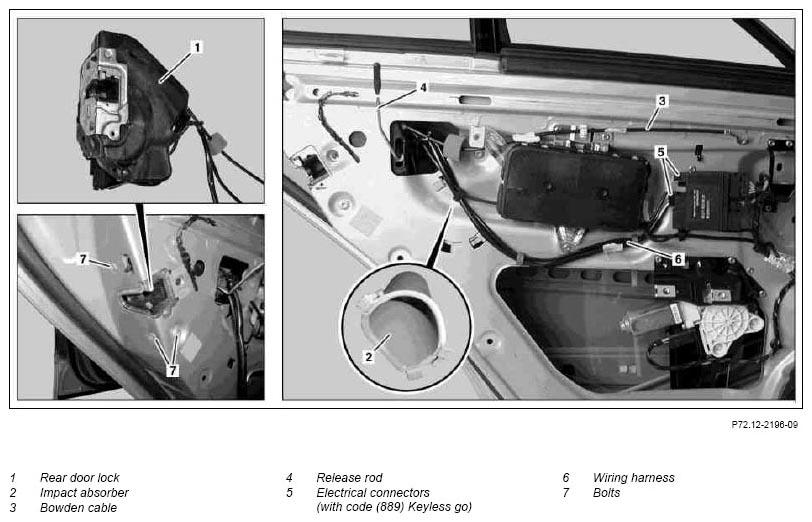

Fig 1: Identifying Rear Door Lock Components

G07505209

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left rear door

	Remove/Install
1	Completely close crank window in rear door
2	Remove door foil from rear door	Only remove door foil until the access cover in the inner door panel is accessible.	AR72.12-P-0105T
3	Release impact absorber (2) by turning clockwise and remove from rear door
4	Remove Bowden cable (3) from inner door panel
5	Unhook release rod (4) in rear door lock(1)
6	Remove rear door handle bearing bracket	On vehicles without code (889) Keyless go	AR72.12-P-4012T
		On vehicles with code (889) Keyless go	AR72.12-P-4012TA
7.1	Disconnect electrical connectors (5)	On vehicles with code (889) Keyless go
8	Remove wiring harness (6) from inner door panel
9	Remove bolts (7)		*BA72.12-P-1005-01A
10	Remove rear door lock (1) from rear door through access cover in inner door panel
11	Install in the reverse order

REAR DOOR

Number	Designation		Model 211
BA72.12-P-1005-01A	Bolts to door lock	Nm	7
