Remove/install bearing bracket for rear door handle - AR72.12-P-4012T

MODEL 211.0/2 except CODE (889) Keyless go

Shown on model 211.0

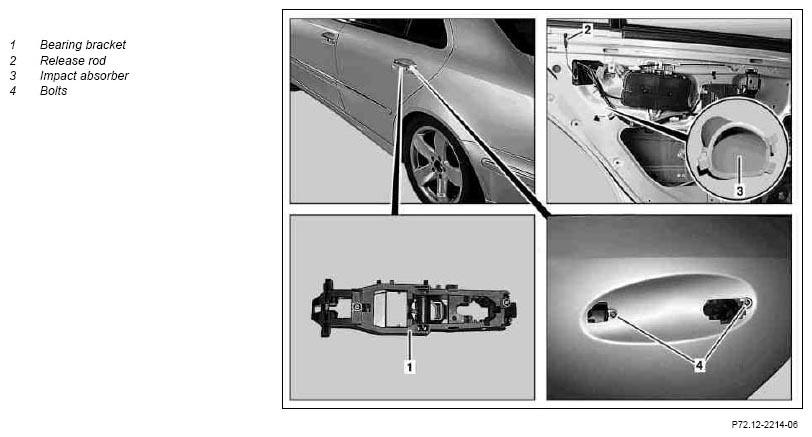

Fig 1: Identifying Rear Door Handle Bearing Bracket Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door foil from rear door	Only remove door foil until access cover in inner door panel is accessible. To do so unclip the release rod (2) on the door lock and remove.	AR72.12-P-0105T
2	Release impact absorber (3) in clockwise direction and withdraw through the access cover and out of the inner door panel
3	Remove outer rear door handle		AR72.12-P-2410T
4	Undo bolts (4)
5	Remove bearing bracket (1) through access cover in inner door panel
6	Install in the reverse order
