Remove/install bearing bracket for rear door handle - AR72.12-P-4012TA

MODEL 211.0/2 with CODE (889) Keyless go

Shown on left rear door, model 211.0

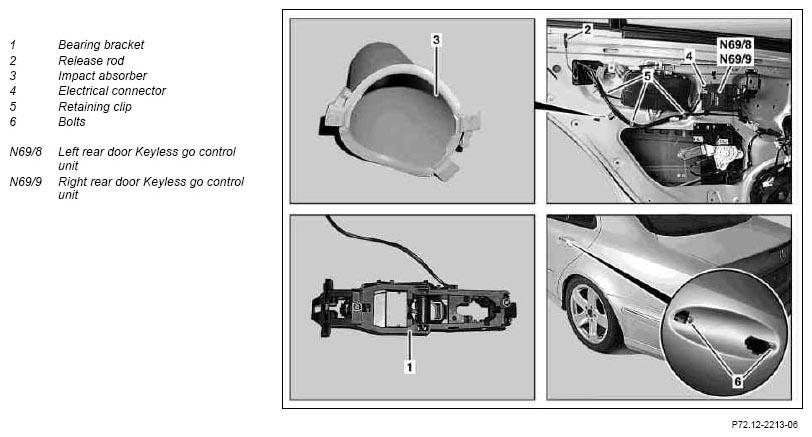

Fig 1: Identifying Rear Door Handle Bearing Bracket Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left rear door, model 211.0

	Remove/Install
1	Remove door foil from rear door	Remove door foil only as far as it takes until the access cover in the inner door panel and the left rear door Keyless Go control unit (N69/8) or right rear door Keyless Go control unit (N69/9) are accessible. To do so unclip the release rod (2) on the door lock and remove.	AR72.12-P-0105T
2	Release impact absorber (3) in clockwise direction and withdraw through the access cover and out of the inner door panel
3	Detach electrical connector (4) on left rear door Keyless go control unit (N69/8) or right rear door Keyless go control unit (N69/9)
4	Remove retaining clip (5) from inner door panel
5	Remove outer rear door handle		AR72.12-P-2410T
6	Loosen bolts (6)
7	Remove bearing bracket (1) through access cover in inner door panel
8	Install in the reverse order
