Remove/install bearing bracket of front door handle - AR72.10-P-4012T

MODEL 211.0/2/6

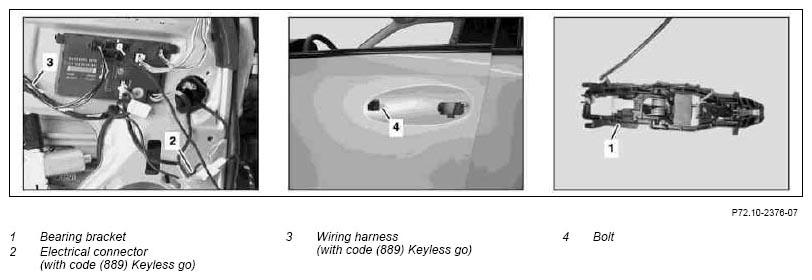

Fig 1: Identifying Front Door Handle Bearing Bracket Components

G07505167

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground line from battery

	Remove/Install
1	Remove door lining on front door	Do not disconnect electrical connectors on door control module	AR72.10-P-1000T
2	Completely close window at the front door using the power window switch	See Operating Instructions
3	Disconnect electrical connectors on door control module and remove door lining from front door
4	Remove door foil from front door	Only remove door foil until access cover in inner door panel and wiring harness (3) are accessible	AR72.10-P-1010T
5.1	Separate electrical connector (2)	On vehicles with code (889) Keyless go
6.1	Release wiring harness (3) from inner door panel	On vehicles with code (889) Keyless go
7	Remove exterior door handle on front door		AR72.10-P-2400T
8	Loosen bolt (4)
9	Remove bearing bracket (1) out of the inner door panel
10	Install in the reverse order
11	Check locking system for proper function
