Remove/install exterior door handle on front door - AR72.10-P-2400T

MODEL 211.0/2/6

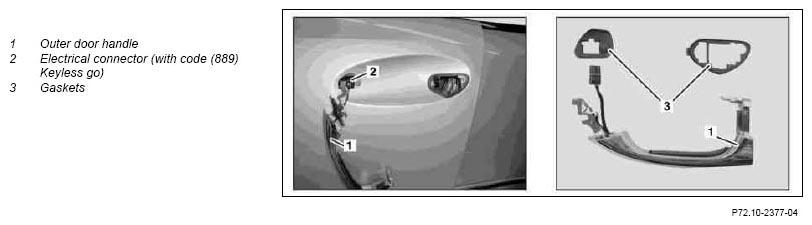

Shown on door handle with code (889) Keyless go  Outer door handle

Fig 1: Identifying Outer Door Handle Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

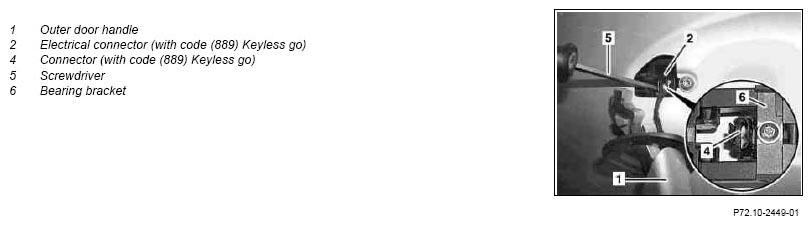

Shown on door handle with code (889) Keyless go

Fig 2: Identifying Outer Door Handle Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove front door lock cylinder		AR72.10-P-4015T
2	Pull outer door handle (1) to the rear and remove out of the front door
3.1	Separate electrical connector (2)	On vehicles with code (889) Keyless go Hold connection (4) of electrical connector with screwdriver (5)This prevents the connection (4) from being unhooked from the bearing bracket (6).
4	Remove outer door handle (1)	Installation:  Ensure that gaskets (3) seat properly.
5	Install in the reverse order
6	Perform function check
