Air ducting, location/task/function - GF83.10-P-2182T

MODELS 211.0/2/6

Shown on model 211.0

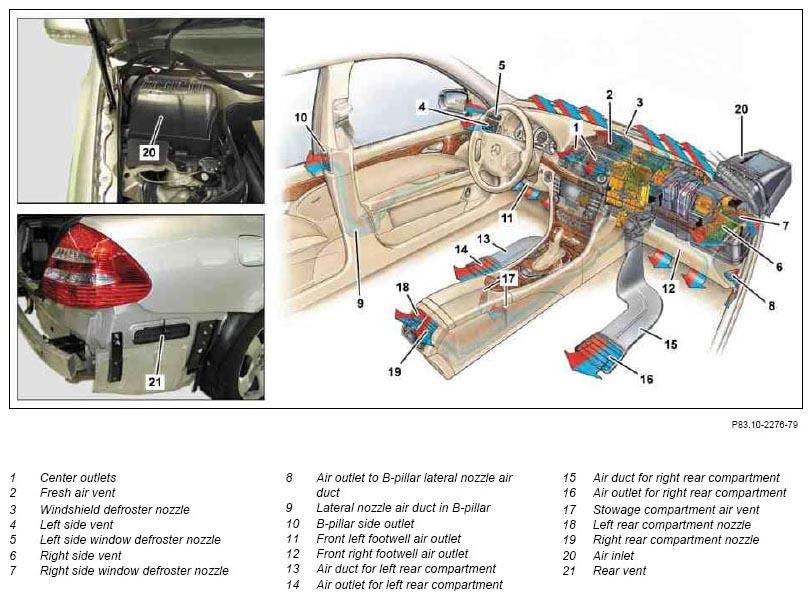

Fig 1: Locating Air Ducting Related Parts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Air ducting, location	For location see graphic.
Air ducting, task		GF83.10-P-2182-01T
Air ducting, function		GF83.10-P-2182-02T
