The ME-SFI limiting maximum vehicle speed function - GF07.61-P-3019V

ENGINE 272.920 in MODEL 203 up to Model Year 8

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203 up to Model Year 8

ENGINE 272.941 in MODEL 203 up to Model Year 8

ENGINE 272.942 in MODEL 171 up to Model Year 8

ENGINE 272.943 in MODEL 211, 219

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251 up to Model Year 8

ENGINE 272.946 in MODEL 221 up to Model Year 8

ENGINE 272.960 in MODEL 203 up to Model Year 8

ENGINE 272.963 in MODEL 171 up to Model Year 8

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221 up to Model Year 8

ENGINE 272.966 in MODEL 230 up to Model Year 8

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8

ENGINE 272.970 in MODEL 203 up to Model Year 8

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221 up to Model Year 8

ENGINE 273.922 in MODEL 221 up to Model Year 8

ENGINE 273.923 in MODEL 164 up to Model Year 8

ENGINE 273.924 in MODEL 221 up to Model Year 8

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8

ENGINE 273.965 in MODEL 230 up to Model Year 8

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221 up to Model Year 8

ENGINE 272.940 in MODEL 209

ENGINE 272.960 in MODEL 209

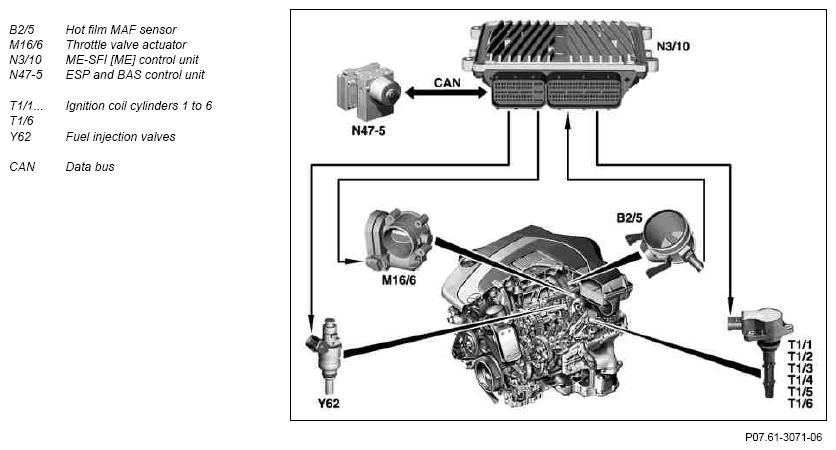

Shown on engine 272.963 in model 171

Fig 1: ME-SFI Limiting Maximum Vehicle Speed Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In order to limit maximum vehicle speed on vehicles with a corresponding engine power output, the throttle valve is closed and the quantity of fuel injected is reduced accordingly once a speed of 250 km/h is reached. In addition, the ignition angle is adjusted to "Late".

These measures ensure simple maximum speed limitation by reduction of the torque.

Component description for the ME-SFI [ME] control unit	GF07.61-P-6000V
Component description for the throttle valve actuator	GF30.20-P-2020V
Component description for the hot film MAF sensor	GF07.07-P-6000V
Component description for the fuel injection valves	GF07.03-P-6010V
Component description for an ignition coil	GF15.10-P-2100V
