Remove/install side trim panel in rear - AR68.30-P-4780T

MODEL 211.2

Shown on left side of vehicle

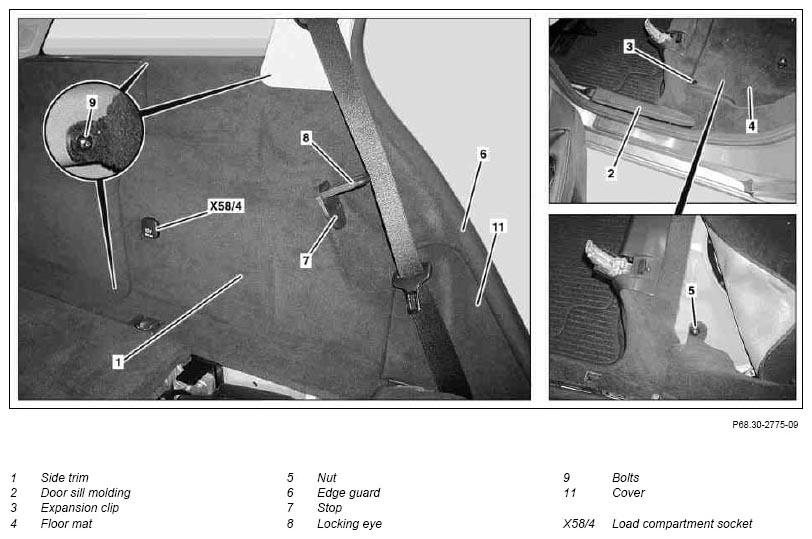

Fig 1: Identifying Rear Side Trim Panel Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left side trim panel

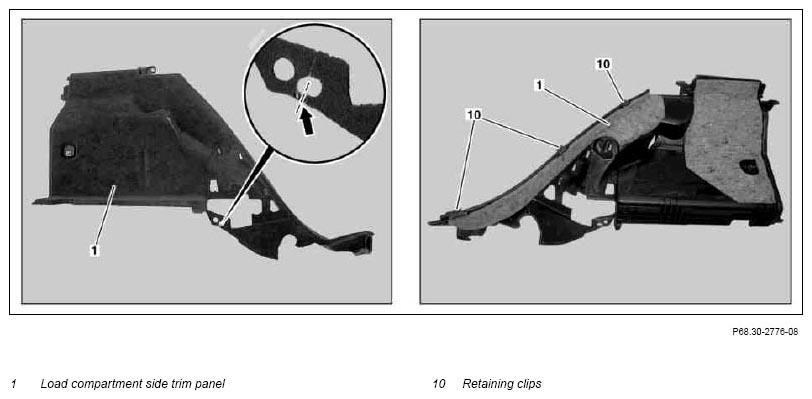

Fig 2: Identifying Rear Side Trim Panel Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove left and right rear seat cushions		AR91.12-P-1020TB
2	Fold down left and right rear seat backrest	See operator's manual.
3	Unclip left and right cover (1) from load compartment side trim panel (1) with mounting wedge		*110589035900
4	Cut stay on load compartment side trim panel (1) at cutting point (arrow) with sharp knife
5	Remove left and right load compartment side trim panel (1)		AR68.30-P-1180T
6	Remove left and right trim from C-pillar		AR68.30-P-4490TA
7	Unclip door sill molding (2) from rear entrance with mounting wedge		*110589035900
8	Remove expansion clip (3).
9	Fold back floor covering (4) until nut (5) is accessible
10	Unscrew nut (5)
11	Remove edge guard (6) in area of load compartment side trim panel (1)
12	Remove stop (7) from locking eye (8)
13	Remove bolts (9)
14	Unclip load compartment side trim panel (1) at retaining clips (10) from C-pillar with mounting wedge.	Installation:  Replace damaged retaining clips (10).
			*110589035900
15	Remove load compartment side trim panel (1) until electrical connector of load compartment socket (X58/4) is accessible.
16	Disconnect electrical connector from load compartment socket (X58/4) and remove load compartment side trim panel (1).
17	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
